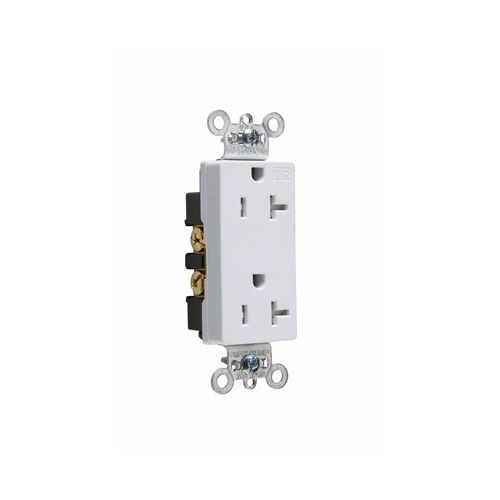

Image of H4-TR26362W
Shop all Pass & Seymour by Legrand

Pass & Seymour TR26362-W Decora Receptacle, 20A, 125V, White

TR26362-W|H4-TR26362W
Shop all Pass & Seymour by Legrand

Pass & Seymour TR26362-W Decora Receptacle, 20A, 125V, White

TR26362-W|H4-TR26362W

Sign In for Dealer Pricing

Become an ADI Customer
Image of H4-TR26362W
Pass & Seymour by Legrand

Pass & Seymour TR26362-W Decora Receptacle, 20A, 125V, White

TR26362-W | H4-TR26362W

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Tamper-Resistant Heavy-Duty Decorator Spec Grade Receptacles, Back and Side Wire, 20A, 125V.

Main Features

  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Auto-ground clip assures positive ground
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
  • Backed-out tri-drive brass terminal screws for faster installation
  • Internal screw-pressure-plate back and side wire capability
  • Two back wire holes for additional wiring flexibility
  • .032" thick brass triple-wipe power contacts
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
  • For covering patents, see www.legrand.us/patents
  • Temperature Rise - Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current, Operating Temperature - Maximum continuous 60°C, minimum -40°C without impact

General Information

Name: Pass & Seymour TR26362-W Decora Receptacle, 20A, 125V, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007277340
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
