Product Overview

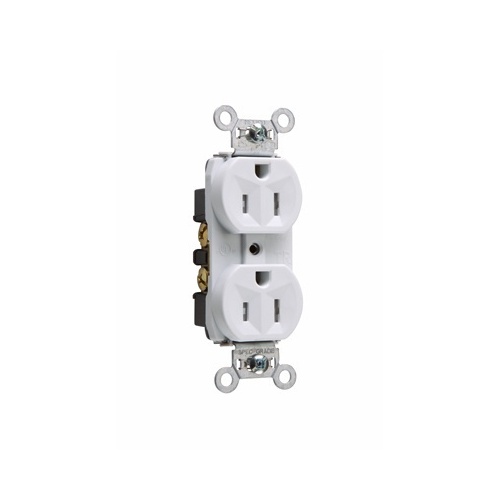

The Pass & Seymour TR5262W is a reliable 15A/125V dual mechanical shutter AC receptacle designed to enhance safety by preventing foreign object insertion. It features a convenient break-off line-contact tab for quick split-circuit wiring and back tri-drive brass terminal screws for faster installation. This outlet offers internal screw-pressure-plate wiring options and two back wire holes for versatile connections. Its durable construction includes 0.032" thick brass triple-wipe power contacts and secure steel strap anchoring. Rated for safe operation with a max temperature rise of 30°C, it works efficiently in a wide temperature range from -40°C to 60°C. Upgrade your electrical setup with this high-quality receptacle today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20A, 125V
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR5262W Power Outlet, Duplex Receptacle, 15A/125V, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007243703
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5262W Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5262W Product Name 15A 125V Construction Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color White Depth 1.13" Height 2.63" Width 1.32"
Current Rating 15A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
