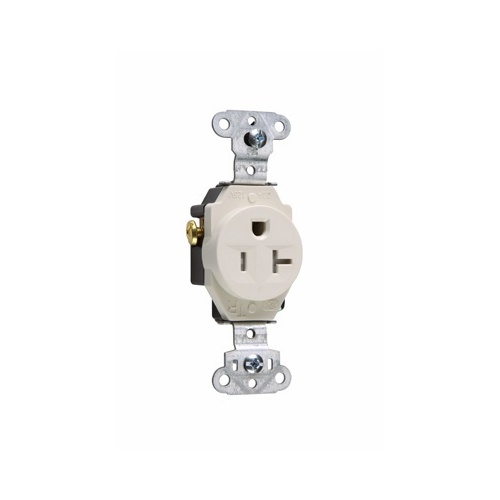

Pass & Seymour TR5351-LA Single Tamper Resistant Receptacle, 20A/125V Outlet, Light Almond
TR5351-LA|H4-TR5351LA
Pass & Seymour TR5351-LA Single Tamper Resistant Receptacle, 20A/125V Outlet, Light Almond
TR5351-LA|H4-TR5351LA
Pass & Seymour by Legrand
Pass & Seymour TR5351-LA Single Tamper Resistant Receptacle, 20A/125V Outlet, Light Almond
TR5351-LA | H4-TR5351LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR5351-LA is a single tamper-resistant receptacle designed for safety and durability. It features a dual mechanical shutter system to block foreign objects and is available in 20A, 125V AC. Its brass triple-wipe power contacts ensure lasting connection, while the corrosion-resistant steel strap resists pulling forces. An auto-ground clip guarantees effective grounding, and a break-off connecting tab allows quick split-circuit wiring. Withstanding up to 30°C temperature rise under heavy load, it operates reliably from -40°C to 60°C. Upgrade your electrical setup with this dependable receptacle today!
Main Features
- Dual mechanical shutter system to help prevent insertions of foreign objects
- AC receptacles available in 15 and 20A, 125V
- 0.032 inch thick brass triple-wipe power contacts for lasting retention
- Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring
- Temperature Rise; Maximum 30�C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60�C, minimum -40�C without impact
General Information
Name: Pass & Seymour TR5351-LA Single Tamper Resistant Receptacle, 20A/125V Outlet, Light Almond
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007241952
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5351LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5351-LA Product Name 20A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, Light Almond Product Type Receptacle
Receptacle Type Tamper-Resistant
Color Almond Depth 1.19" Height 3.28" Width 1.38"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
