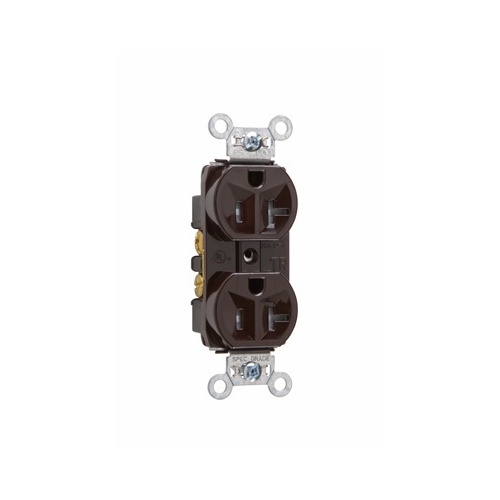

Pass & Seymour TR5362 Duplex Outlet, 20A/125V, Brown
TR5362|H4-TR5362
Pass & Seymour TR5362 Duplex Outlet, 20A/125V, Brown
TR5362|H4-TR5362
Pass & Seymour by Legrand
Pass & Seymour TR5362 Duplex Outlet, 20A/125V, Brown
TR5362 | H4-TR5362
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR5362 delivers enhanced safety with a dual mechanical shutter system that helps block foreign object insertion. Featuring a patented circuit label on the face, it ensures permanent circuit identification for ease of use. The design includes a convenient break-off line-contact tab for quick, split-circuit wiring. Installation is streamlined with backed-out tri-drive brass terminal screws and internal screw-pressure-plate for back and side wire connection. Flexible wiring options come from two back wire holes. Durable 0.032" thick brass triple-wipe power contacts and robust steel strap anchoring provide reliable performance. Engineered to withstand a temperature rise of up to 30°C with continuous operation between -40°C and 60°C. Invest in this high-quality, dependable receptacle for your electrical needs today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR5362 Duplex Outlet, 20A/125V, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007243680
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5362 Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5362 Product Name 20A 125V Construction Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Brown Depth 1.13" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards UL 498 Country of Origin MX
