Product Overview

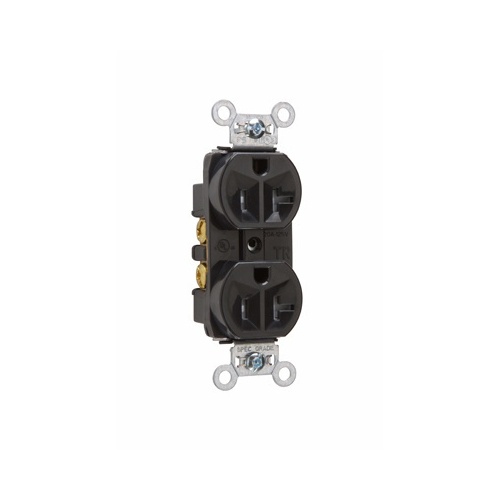

The Pass & Seymour TR5362-BK receptacle by Legrand features a dual mechanical shutter system to prevent foreign object insertion, ensuring safety. It includes a patented circuit label on the face for permanent circuit identification. A break-off line-contact tab allows quick split-circuit wiring, complemented by backed-out tri-drive brass terminal screws for faster installation. The device supports back and side wire capability with two back wire holes for flexible wiring. It has durable 0.032" thick brass triple-wipe power contacts. Two drive screws secure the steel strap for strong torque resistance. Designed for durability, it maintains a maximum 30°C temperature rise at full load and operates within -40°C to 60°C. Upgrade your electrical setup with this reliable and easy-to-install receptacle today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR5362-BK Power Outlet, Duplex Receptacle, 20A/125V, Black
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007243710
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5362BK Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5362-BK Product Name 20A 125V Construction Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Black Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Black Depth 1.13" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards UL 498 Country of Origin MX
