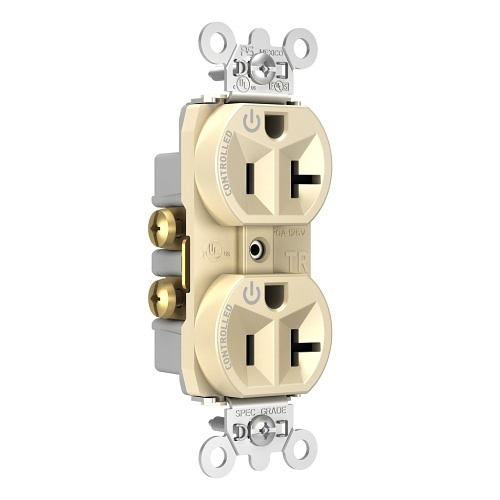

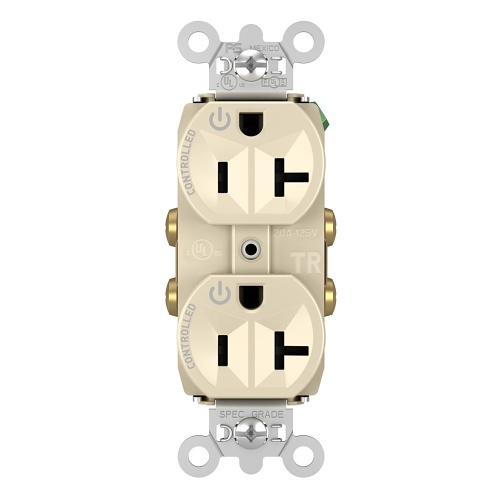

Pass & Seymour TR5362CDLA Dual Load Receptacle Plug with Control, 20A, 125V
TR5362CDLA|H4-TR5362CDL
Pass & Seymour TR5362CDLA Dual Load Receptacle Plug with Control, 20A, 125V
TR5362CDLA|H4-TR5362CDL
Pass & Seymour by Legrand
Pass & Seymour TR5362CDLA Dual Load Receptacle Plug with Control, 20A, 125V
TR5362CDLA | H4-TR5362CDL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.
Main Features
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Permanent controlled receptacle markings using abrasion resistant ink
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility
- Dual mechanical shutter system to help prevent insertion of foreign objects (for Tamper-Resistant models)
- Strap tabs wrap around face to prevent strap from separating from face and back body
- CH Version Only; Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
General Information
Name: Pass & Seymour TR5362CDLA Dual Load Receptacle Plug with Control, 20A, 125V
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5362CDL Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5362CDLA Product Name Hard-Use Spec Grade Plug Load Controllable Receptacle, 20A, 125V, Light Almond Product Type Receptacle
Color Almond Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
