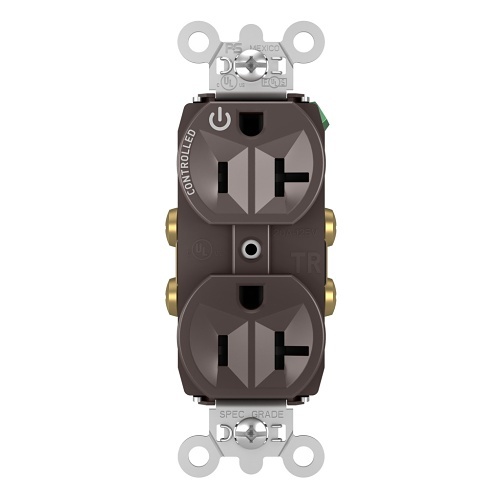

Pass & Seymour TR5362CH Plug Load Receptacle, 20A, 125V, Half Control, Brown
TR5362CH|H4-TR5362CH
Pass & Seymour TR5362CH Plug Load Receptacle, 20A, 125V, Half Control, Brown
TR5362CH|H4-TR5362CH
Pass & Seymour by Legrand
Pass & Seymour TR5362CH Plug Load Receptacle, 20A, 125V, Half Control, Brown
TR5362CH | H4-TR5362CH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.
Main Features
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Permanent controlled receptacle markings using abrasion resistant ink
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility
- Strap tabs wrap around face to prevent strap from separating from face and back body
- CH Version Only; Split circuit tab broken at the factory, allowing half of the receptacle to be controlled
General Information
Name: Pass & Seymour TR5362CH Plug Load Receptacle, 20A, 125V, Half Control, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007051216
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5362CH Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5362CH Product Name 20A 125V Hard Use Spec-Grade Tamper-Resistant Half-Controlled Plug Load Decorator Duplex Receptacle, Brown Product Type Duplex Receptacle
Color Brown Depth 1.13" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
