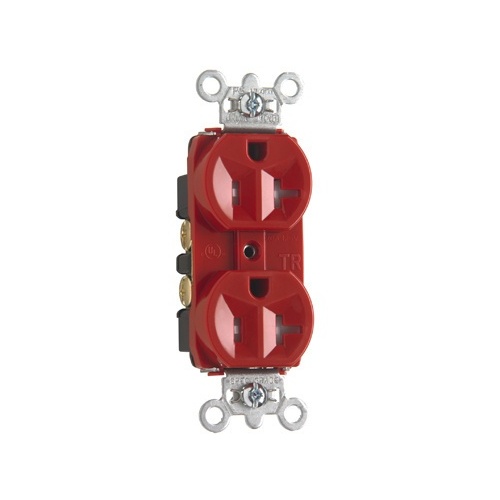

Pass & Seymour TR5362-RED Outlet, Duplex Receptacle, 20A/125V, Red
TR5362-RED|H4-TR5362RED
Pass & Seymour TR5362-RED Outlet, Duplex Receptacle, 20A/125V, Red
TR5362-RED|H4-TR5362RED
Pass & Seymour by Legrand
Pass & Seymour TR5362-RED Outlet, Duplex Receptacle, 20A/125V, Red
TR5362-RED | H4-TR5362RED
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR5362-RED is a reliable 20A/125V duplex receptacle designed with safety and efficiency in mind. Featuring a dual mechanical shutter system, it prevents the insertion of foreign objects, ensuring enhanced safety. The unique patented circuit label on the face allows for permanent circuit identification, while the break-off line-contact tab facilitates quick split-circuit wiring. Installation is simplified with backed-out tri-drive brass terminal screws and versatile wiring options, including internal screw-pressure-plate and two back wire holes. Durable 0.032" brass triple-wipe contacts provide superior conductivity, and the steel strap is securely anchored to withstand abrupt removal torque. It operates safely within a temperature range of -40°C to 60°C with minimal temperature rise, guaranteeing dependable performance. Upgrade your electrical setup with this top-quality receptacle today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR5362-RED Outlet, Duplex Receptacle, 20A/125V, Red
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007243734
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5362RED Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5362-RED Product Name 20A 125V Construction Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Red Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Red Depth 1.13" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
