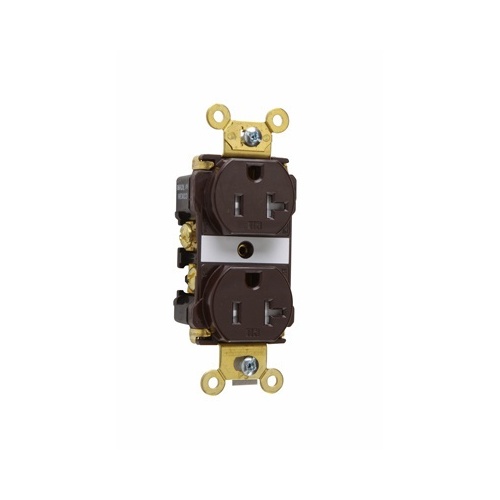

Pass & Seymour TR63 Tamper-Resistant Receptacle, 20A, 125V, Brown
TR63|H4-TR63
Pass & Seymour TR63 Tamper-Resistant Receptacle, 20A, 125V, Brown
TR63|H4-TR63
Pass & Seymour by Legrand
Pass & Seymour TR63 Tamper-Resistant Receptacle, 20A, 125V, Brown
TR63 | H4-TR63
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR63 Tamper Resistant Receptacle is designed for safety and durability, featuring a thermoplastic dual shutter system to block foreign object insertion. It ensures a reliable ground connection with its auto-ground clip and includes a heavy-duty brass one-piece mounting strap with an integral ground. Power contacts are triple-wipe brass for secure retention, while strap tabs lock the face and back body firmly. Made with impact-resistant nylon, it has two screws anchoring the strap to the body. Installation is simplified with a patented screw-pressure-plate clamp on the ground terminal, using #10 brass screws for a secure connection. It withstands high temperatures and overloads, supporting a maximum continuous temperature of 60°C and a minimum of -40°C. Upgrade your electrical setup with this robust, easy-to-install receptacle today!
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63 Tamper-Resistant Receptacle, 20A, 125V, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007268003
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63 Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63 Product Name 20A 125V Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Brown Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards UL 498 Country of Origin MX
