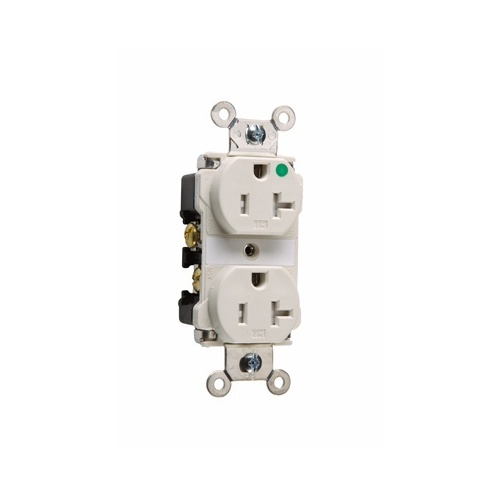

Pass & Seymour TR63-HLA Tamper Resistant Hospital Grade, 20A, 125V, Light Almond
TR63-HLA|H4-TR63HLA
Pass & Seymour TR63-HLA Tamper Resistant Hospital Grade, 20A, 125V, Light Almond
TR63-HLA|H4-TR63HLA
Pass & Seymour by Legrand
Pass & Seymour TR63-HLA Tamper Resistant Hospital Grade, 20A, 125V, Light Almond
TR63-HLA | H4-TR63HLA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR63-HLA tamper-resistant hospital receptacle by Legrand features a thermoplastic dual mechanism shutter system designed to prevent foreign object insertion. It comes in 20 Amp, 125V AC and includes extra heavy-duty brass mounting straps with integral ground for durability. The nickel-plated brass triple-wipe power contacts ensure lasting retention, while strap tabs securely lock the face to the body. Constructed with impact-resistant nylon and anchored with two drive screws, installation is simplified by patented external screw-pressure-plate back wire clamps for a reliable connection. Rated for a maximum 30°C temperature rise and operating between -40°C to 60°C, it's built for demanding healthcare environments. Buy now for superior safety and long-lasting performance.
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20 Amp, 125V
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, nickel-plated; brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63-HLA Tamper Resistant Hospital Grade, 20A, 125V, Light Almond
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007145175
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63HLA Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63-HLA Product Name 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Ivory Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Ivory Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
