Pass & Seymour TR63-HW Tamper Resistant Hospital Grade Receptacle, 20A, 125V
TR63-HW|H4-TR63HW
Pass & Seymour TR63-HW Tamper Resistant Hospital Grade Receptacle, 20A, 125V
TR63-HW|H4-TR63HW
Pass & Seymour by Legrand
Pass & Seymour TR63-HW Tamper Resistant Hospital Grade Receptacle, 20A, 125V
TR63-HW | H4-TR63HW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

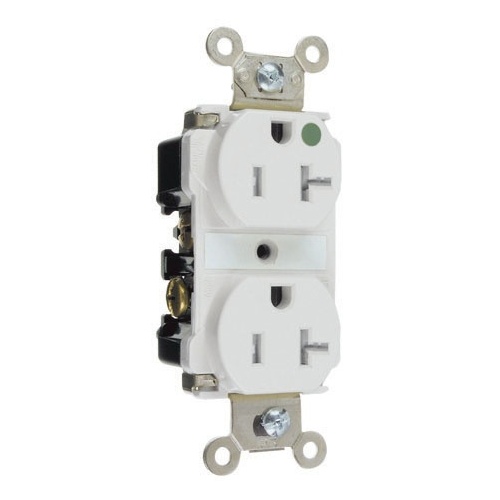

Experience unmatched safety and durability with the Pass & Seymour TR63-HW tamper-resistant hospital receptacle. Designed with a thermoplastic dual mechanism shutter system, it effectively blocks foreign object insertion. Available in 15 and 20 Amp, 125V models, it features a heavy-duty brass mounting strap with an integral ground for robust support. The nickel-plated brass contacts ensure reliable power retention, while the impact-resistant nylon body guarantees long-lasting protection. Installation is simplified with exclusive external screw-pressure-plate clamps and visual assurance screws. Rated for temperature resilience, this receptacle ensures dependable performance in demanding environments. Upgrade your space with this secure and durable solution today!
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20 Amp, 125V
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, nickel-plated; brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63-HW Tamper Resistant Hospital Grade Receptacle, 20A, 125V
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007145182
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63HW Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63-HW Product Name 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color White Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
