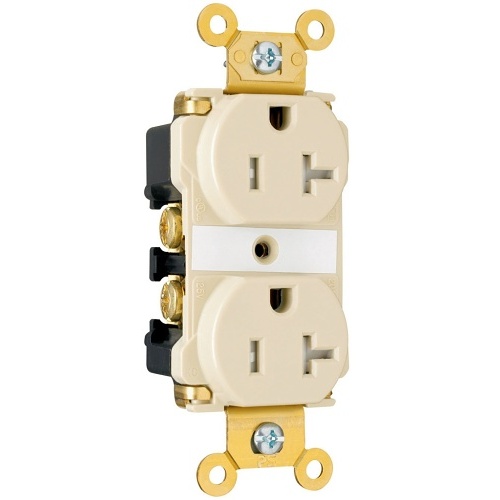

Pass & Seymour TR63-I Tamper-Resistant Receptacle, 20A, 125V, Ivory
TR63-I|H4-TR63I
Pass & Seymour TR63-I Tamper-Resistant Receptacle, 20A, 125V, Ivory
TR63-I|H4-TR63I
Pass & Seymour by Legrand
Pass & Seymour TR63-I Tamper-Resistant Receptacle, 20A, 125V, Ivory
TR63-I | H4-TR63I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR63-I Tamper Resistant Receptacle is designed with a thermoplastic dual mechanism shutter to prevent foreign object insertion, ensuring safety. It features an auto-ground clip for a reliable ground connection and a robust one-piece brass mounting strap with integral ground for durability. The brass triple-wipe power contacts provide long-lasting retention, while the strap tabs secure the face to prevent separation. Its impact-resistant nylon face and back enhance durability. Installation is simplified with patented external screw-pressure-plate back wire clamps and #10 brass screws. It operates safely up to 60°C and withstands temperature rises up to 30°C after overload testing. Ideal for ensuring secure and reliable electrical connections, this receptacle is a smart choice for safety-conscious users. Upgrade your electrical setups with confidence today!
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63-I Tamper-Resistant Receptacle, 20A, 125V, Ivory
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007268010
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63I Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63-I Product Name 20A 125V Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Ivory Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Ivory Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
