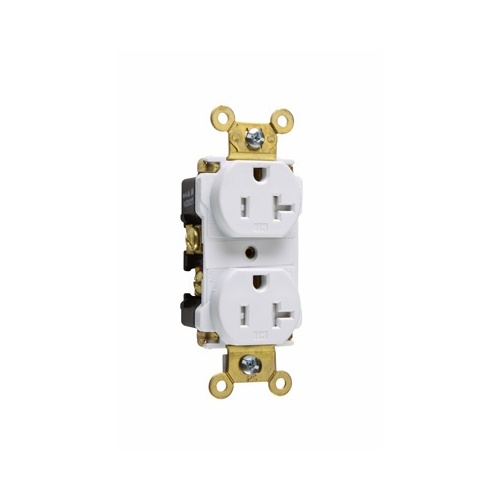

Pass & Seymour TR63-W Tamper Resistant Receptacle, 20A, 125V, White
TR63-W|H4-TR63W
Pass & Seymour TR63-W Tamper Resistant Receptacle, 20A, 125V, White
TR63-W|H4-TR63W
Pass & Seymour by Legrand
Pass & Seymour TR63-W Tamper Resistant Receptacle, 20A, 125V, White
TR63-W | H4-TR63W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Tamper-Resistant Spec Grade Receptacles, Back and Side Wire, 20A, 125V.
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One-piece, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Temperature Rise, Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current, Operating Temperature, Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR63-W Tamper Resistant Receptacle, 20A, 125V, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007268027
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR63W Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR63-W Product Line Pass & Seymour Product Name 20A 125V Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White Product Type Receptacle
Color White Depth 0.9" Height 2.75" Width 1.62"
Current Rating 20A Voltage Rating 125V
Country of Origin MX Environmental Certification UL
