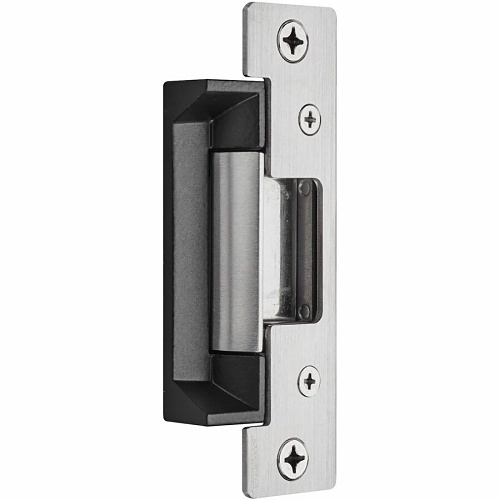

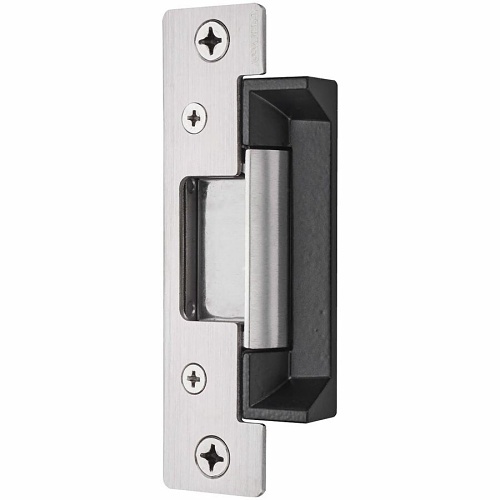

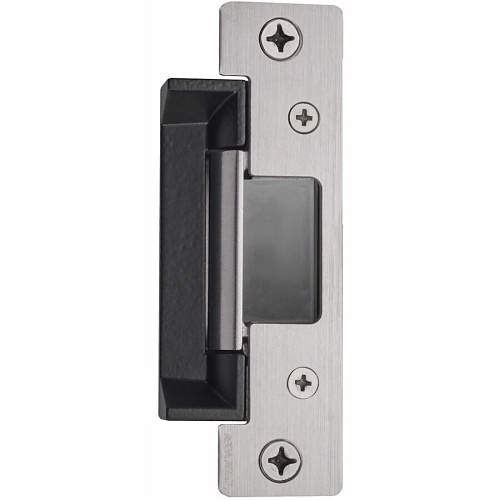

HES 5300-LBM Universal Electric Strike with Latchbolt Monitor
5300-LBM|HE-5300L
HES 5300-LBM Universal Electric Strike with Latchbolt Monitor
5300-LBM|HE-5300L
HES by ASSA ABLOY
HES 5300-LBM Universal Electric Strike with Latchbolt Monitor
5300-LBM | HE-5300L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The compact, high performance electric strike designed for fire-rated openings with cylindrical locksets where there is limited space behind the jamb.
Low Profile
- Compact, high-performance design
- Ideal for applications where there is limited space behind the jamb
- Strike body depth 1-1/16"
Versatile Design
- Dual voltage 12/24 VDC/VAC
- Field selectable fail safe/ fail secure
- Unique keeper pin locking design
- Plug-in connector and trim enhancer included
Tested for Durability
- ANSI/BHMA A156.31, Grade 1
- Static strength 1,500 lbs, Dynamic strength 70 ft-lbs
- Designed with the strength and durability to meet UL outdoor rating requirements
- UL 10C fire rated, 3-hour single door (fail secure only)
Main Features
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70'- lbs
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
General Information
Name: HES 5300-LBM Universal Electric Strike with Latchbolt Monitor
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090031248
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-5300L Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 5300-LBM Product Name 5300 Series Electric Strike Product Series 5300 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Cylindrical Door Handling Non Handed Holding Strength 70 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door Lock, Fire Door, Outdoor Height 4.86" Width 1.07"
Input Current 120mA, 240mA Input Voltage 12V DC, 24V DC Power Source AC
Limited Warranty 5-Year
Certifications & Standards ANSI/BHMA A156.31, Grade 1 CAL FIRE, 3776-1654:0502 NFPA-252 fire door Compliant UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only] UL 294 Listed CAN/ULC-S104 Fire Door Compliant Compatibility Works with cylindrical locksets up to a 5/8" throw latchbolt Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Dual Voltage, Latchbolt Monitor, PoE Friendly, Static Strength Package Contents - 5300 Series Electric Strike
- Trim Enhancer
