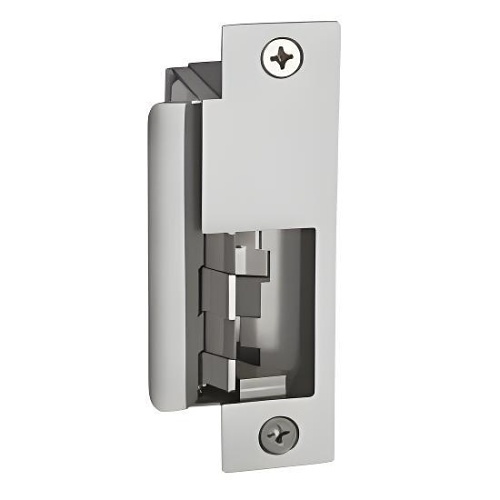

HES 8500-605 Electric Strike
HES 8500-605 Electric Strike
HES 8500-605 Electric Strike
10700402 | HE-8500605
Please sign in to view pricing and availability and to add to cart.
Product Overview
The HES 8500-605 is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the strike installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500-605 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The strike accommodates mortise latchbolts up to 3/4" throw. The 8500-605 accommodates latchbolts up to 5/8" throw and features a bright brass finish.
Main Features
- Bright brass finish
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lb
- Dynamic strength 70'-lb
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
- Dual voltage 12 or 24VDC/VAC
- Non-handed
General Information
Specifications
ADI Part Number HE-8500605 Brand Name HES by ASSA ABLOY Manufacturer Part Number 10700402 Product Name HES 8500-605 Fire-Rated Compact Electric Strike, Concealed, Bright Brass Product Series 8500 Product Type Electric Strike
Compatible Door Lock Type Mortise Holding Strength 70 lb Security Configuration Fail Safe, Fail Secure
Input Voltage 12V AC, 12V DC, 24V AC, 24V DC Power Source AC
Features Compact, Internally Mounted Solenoid, Latchbolt Strike Monitor (LBSM)
