HES 9400-606-LBSM 9400 Series Slim-Line, Outdoor Rated Surface Mounted Electric Strike with Latchbolt Strike Monitor, Satin Brass
HES 9400-606-LBSM 9400 Series Slim-Line, Outdoor Rated Surface Mounted Electric Strike with Latchbolt Strike Monitor, Satin Brass
HES 9400-606-LBSM 9400 Series Slim-Line, Outdoor Rated Surface Mounted Electric Strike with Latchbolt Strike Monitor, Satin Brass
9400-606-LBSM | HE-94606LBSM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The slim-line, surface mounted solution.

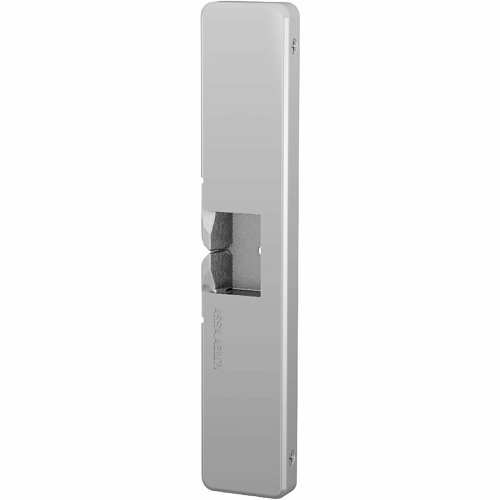

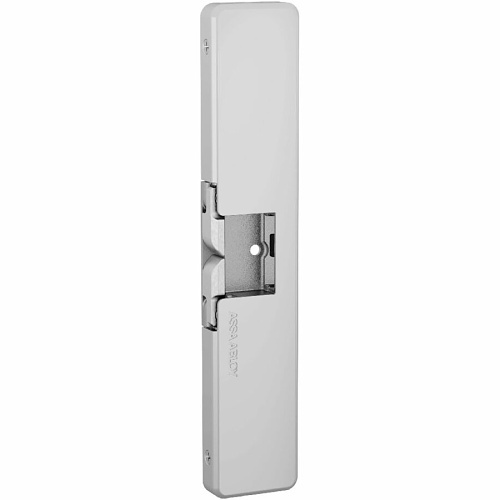

The 9400 Series Electric Strike is a slimline, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw Pullman latchbolt. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
An 1/8" spacer plate is provided to accommodate varying door gaps. The 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe/fail secure operation, and for 12 or 24 VDC. The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
Main Features
- Installs in metal and wood frames
- Wood screws not provided
- One 1/8" [3.2 mm] spacer plate included
- Decorative cover for sleek look
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
General Information
Specifications
ADI Part Number HE-94606LBSM Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9400-606-LBSM Product Name 9400 Surface Mounted Electric Strike Product Series 9400 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 1500 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Door Lock, Outdoor Color Brass Depth 0.55" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source DC
Limited Warranty 5-Year
Certifications & Standards ANSI/BHMA A156.31, Grade 1 UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 listed UL 305 listed Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor (LBSM), Surface Mount Package Contents - 9400 Surface Mounted Electric Strike
- 1 x 1/8" [3.2mm] Spacer Plate
