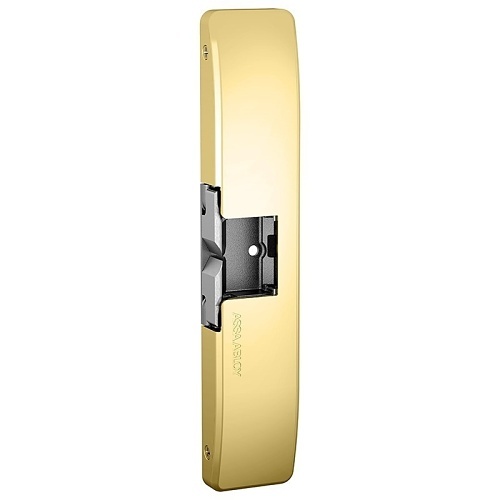

HES 9500-606 Surface Mounted Electric Strike Fire Rated, 12-24VDC, Satin Brass
HES 9500-606 Surface Mounted Electric Strike Fire Rated, 12-24VDC, Satin Brass
HES 9500-606 Surface Mounted Electric Strike Fire Rated, 12-24VDC, Satin Brass
9500-606 | HE-95606
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 9500 series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.
The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Main Features
- Installs in metal or wood frames
- Separate base and decorative cover for easy adjustments
- 9500 Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
General Information
Specifications
ADI Part Number HE-95606 Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9500-606 Product Name 9500 Electric Strike Product Series 9500 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 70 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Door Lock, Fire Door, Outdoor Color Brass Depth 0.75" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source AC
Limited Warranty 5-Year
Certifications & Standards UL 10C Rated CAN4-S104 (ULC-S104) WHI UL 1034 UL 294 (6th Edition) Listed ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373) NFPA-252 ASTM-E152 California Fire Marshall listed NFPA 80-07 Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Dual Voltage, Field Selectable Operation, Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, PoE Friendly, Static Strength, Surface Mount Indoor/Outdoor Outdoor
