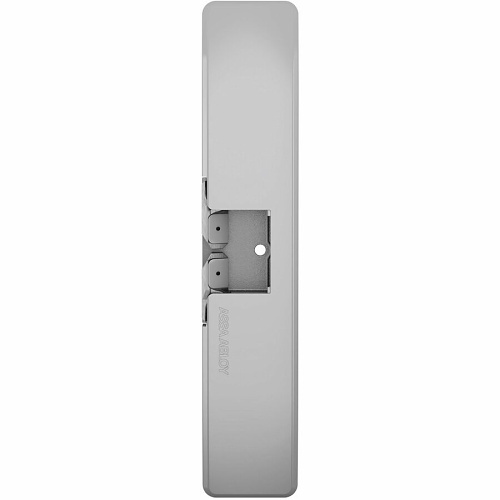

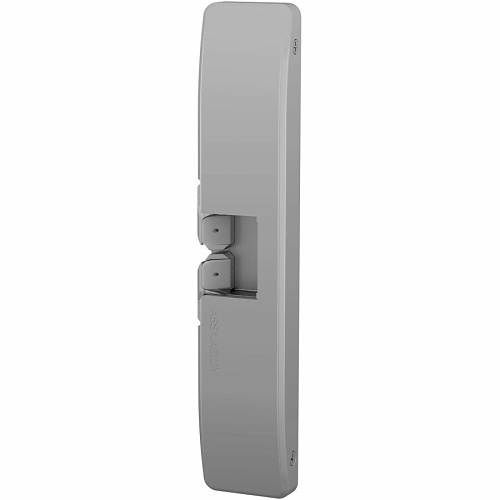

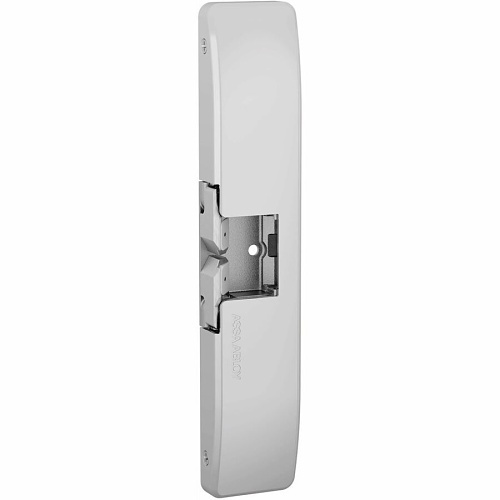

HES 9500-629-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bright Stainless Steel
HES 9500-629-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bright Stainless Steel
HES 9500-629-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bright Stainless Steel
9500-629-LBSM | HE-95629LBSM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 9500 series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.
The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Main Features
- Installs in metal or wood frames
- Separate base and decorative coverfor easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24VDC
- Horizontal adjustability
General Information
Specifications
ADI Part Number HE-95629LBSM Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9500-629-LBSM Product Name 9500 Electric Strike Product Series 9500 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 1500 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Fire Door, Outdoor Color Silver Depth 0.75" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin US Features Dual Voltage, Field Selectable Operation, Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, PoE Friendly, Static Strength, Surface Mount Indoor/Outdoor Outdoor
