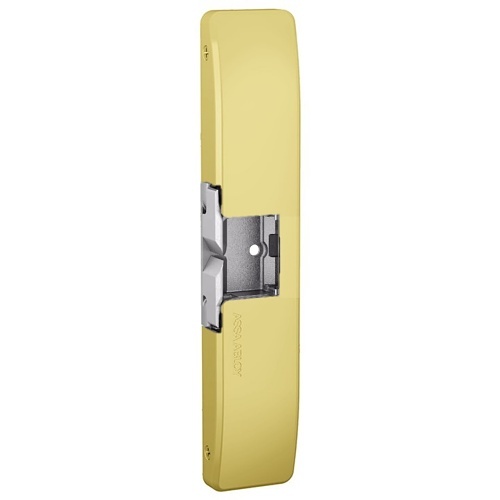

HES by Assa Abloy 9600-605-LBM 9600
9600-605-LBM | HE-96605LBM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The stylish windstorm resistant, surface mounted solution.
The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Main Features
- Windstorm resistant surface mounted electric strike
- Accommodates rim exit devices with 3/4" throw Pullman latchbolt
- No frame cutting required for installation
- Field selectable for fail secure or fail safe operation
- Supports 12 or 24 VDC
- Stainless steel housing for durability
- Easy adjustments with separate base and cover
- Exceeds ANSI Windstorm testing standards
- Exceeds ANSI Windstorm testing standards
General Information
Specifications
ADI Part Number HE-96605LBM Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9600-605-LBM Product Name 9600 Surface Mounted Electric Strike Product Series 9600 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 2000 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Door Lock, Fire Door, Outdoor Color Brass Depth 0.75" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin US Features Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor (LBSM), Surface Mount
