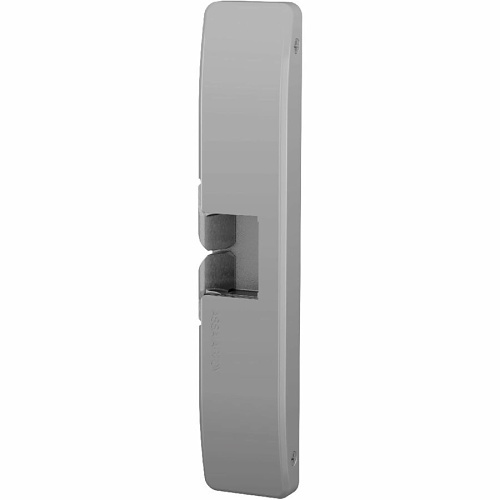

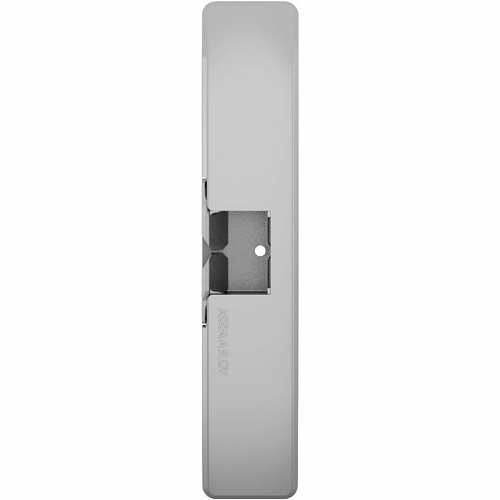

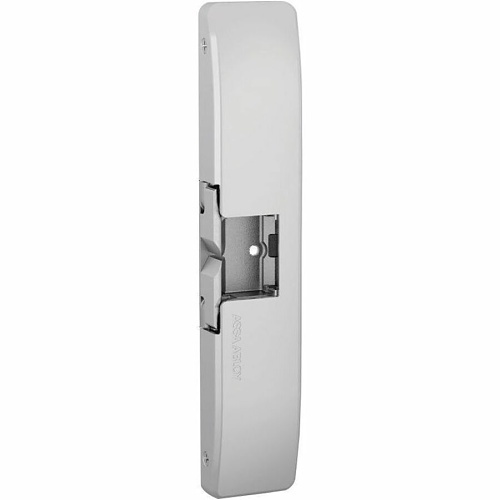

HES 9600-629-LBM Surface Mounted Electric Strike Windstorm Resistant, Latchbolt Monitor, 12-24VDC, Bright Stainless Steel
HES 9600-629-LBM Surface Mounted Electric Strike Windstorm Resistant, Latchbolt Monitor, 12-24VDC, Bright Stainless Steel
HES 9600-629-LBM Surface Mounted Electric Strike Windstorm Resistant, Latchbolt Monitor, 12-24VDC, Bright Stainless Steel
9600-629-LBM | HE-96629LBM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The stylish windstorm resistant, surface mounted solution.
The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Main Features
- Windstorm resistant surface mounted design
- Accommodates rim exit devices with 3/4" latchbolt
- No frame cutting required for installation
- Encased in 3/4" stainless steel housing
- Field selectable for fail secure or fail safe operation
- Compatible with 12 or 24 VDC
- Exceeds ANSI Windstorm testing standards
- Easy installation with separate base and cover
General Information
Specifications
ADI Part Number HE-96629LBM Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9600629LBM Product Name 9600 Surface Mounted Electric Strike Product Series 9600 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 120 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Outdoor, Rim Exit Device Color Silver Depth 0.75" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source AC
Limited Warranty 5-Year
Certifications & Standards UL Listed Compatibility 3/4" Pullman Rim Exit Devices
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Dual Voltage, Latchbolt Monitor, Static Strength, Surface Mount
