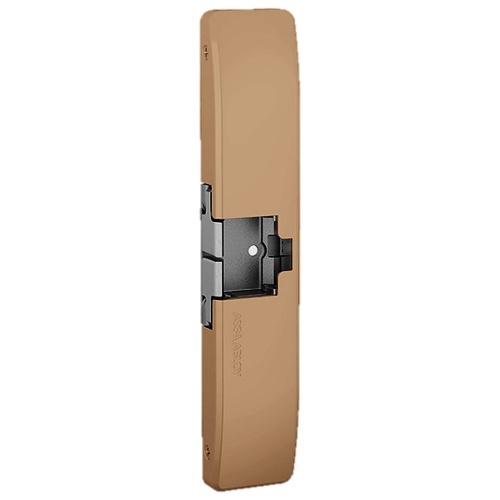

HES 9700-612-LBM 9700 Series Surface Mounted Electric Strike LBM, Satin Bronze
HES 9700-612-LBM 9700 Series Surface Mounted Electric Strike LBM, Satin Bronze
HES 9700-612-LBM 9700 Series Surface Mounted Electric Strike LBM, Satin Bronze
9700-612-LBM | HE-9700612LM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 9700-612-LBM is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt and Yale SquareBolt exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. The 9700-612-LBM is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The strike features a satin bronze finish and comes equipped with a latchbolt monitor.
Main Features
- Satin bronze finish
- Equipped with a latchbolt monitor
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lb
- Dynamic strength 120'-lb
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Dual voltage 12 or 24VDC
General Information
Specifications
ADI Part Number HE-9700612LM Brand Name HES by ASSA ABLOY Manufacturer Part Number 9700-612-LBM Product Name HES 9700-612-LBM Windstorm-Rated Electric Strike, Latchbolt Monitor, Satin Bronze Product Series 9700 Product Type Electric Strike
Holding Strength 120 lb Security Configuration Fail Safe, Fail Secure
Input Voltage 12V DC, 24V DC Power Source AC
Features Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor
