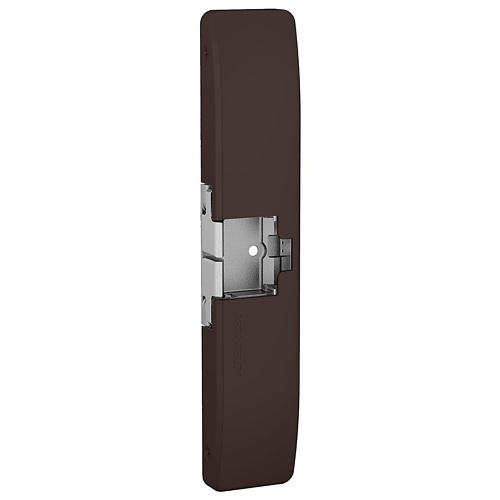

HES 9700-613E-LBSM 9700 Series Surface Mounted Electric Strike, Latchbolt Strike Monitor, Dark Satin Bronze
HES 9700-613E-LBSM 9700 Series Surface Mounted Electric Strike, Latchbolt Strike Monitor, Dark Satin Bronze
HES 9700-613E-LBSM 9700 Series Surface Mounted Electric Strike, Latchbolt Strike Monitor, Dark Satin Bronze
9700-613E-LBSM | HE-9700613E
Please sign in to view pricing and availability and to add to cart.
Product Overview
The stylish windstorm resistant and fire rated, squarebolt solution.
The 9700 Series Electric Strike is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
Main Features
- Installs in metal or wood (wood screws not included)
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength to 2,000 lbs
- Dynamic strength to 120 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Horizontal adjustment
- Non-handed
General Information
Specifications
ADI Part Number HE-9700613E Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9700-613E-LBSM Product Name 9700 Electric Strike Product Series 9700 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 2000 lb Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Fire Door, Outdoor Color Bronze Depth 0.75" Height 9" Material Stainless Steel Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source DC
Limited Warranty 5-Year
Certifications & Standards ANSI/BHMA A156.31, Grade 1, ANSI/SDI A250.13 windstorm resistant, ANSI-ASTM E330, ASTM-E152 fire door compliant, California Fire Marshal listed, CAN/ULC-S104 fire door conformant, Florida Building Code approved TAS 201, 202, 203, NFPA 80-07 compliant, NFPA-252 fire door Compliant, UL 1034 burglary-resistant listed and suitable for outdoor use, UL 10C fire rated, 3-hour single door (fail secure only), UL 294 Listed, UL 305 listed Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor Indoor/Outdoor Outdoor
