Da-Lite 14787L Advantage Projection Screen with Plenum-Rated Case and Trim, 208"
14787L|HI-14787L
Da-Lite 14787L Advantage Projection Screen with Plenum-Rated Case and Trim, 208"
14787L|HI-14787L
Da-Lite by Legrand
Da-Lite 14787L Advantage Projection Screen with Plenum-Rated Case and Trim, 208"
14787L | HI-14787L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

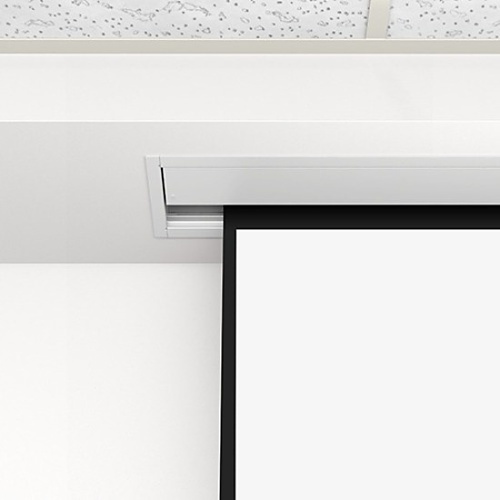

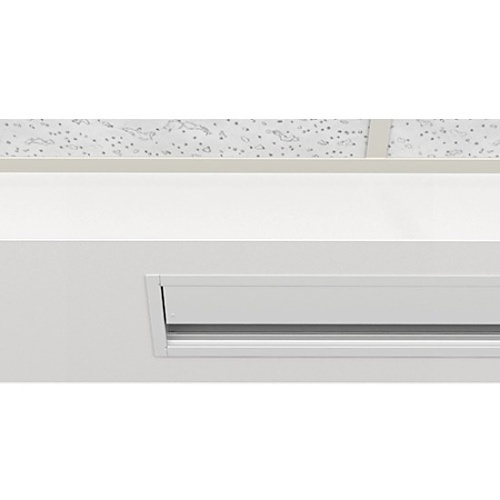

The Advantage ceiling-recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the large format screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the large format screen housing to the structure above the drop ceiling. Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184in Diagonal in 16:9 and up to 189in Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70in between the ceiling and the top of the screen, making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future-proofing for height adjustability – this is the fine line between status quo and jaw drop.
Main Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
General Information
Name: Da-Lite 14787L Advantage Projection Screen with Plenum-Rated Case and Trim, 208"
Category: Da-Lite by Legrand, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code: 717068767270
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HI-14787L Brand Name Da-Lite by Legrand Manufacturer Legrand Group Manufacturer Part Number 14787L Product Line Advantage Product Name Advantage Projection Screen Product Type Projection Screen
Diagonal Image Size 208" Screen Folding Mechanism Electric
Aspect Ratio 16:10
Color Black, White
Mount Type Ceiling Mount, Recessed Mount
Limited Warranty 5-Year
Environmental Certification GREENGUARD, GREENGUARD Gold Environmentally Friendly Yes Package Contents - Advantage Projection Screen
- Decora-style, three-button wall switch
