Da-Lite 21792LS Ceiling Recessed Electric Screen with Plenum Rated Aluminum Case and Trim

Da-Lite 21792LS Ceiling Recessed Electric Screen with Plenum Rated Aluminum Case and Trim

Da-Lite 21792LS Ceiling Recessed Electric Screen with Plenum Rated Aluminum Case and Trim
21792LS | HI-21792LS
Please sign in to view pricing and availability and to add to cart.
Product Overview

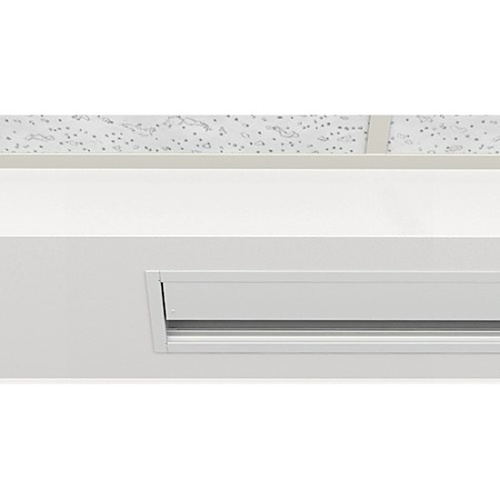

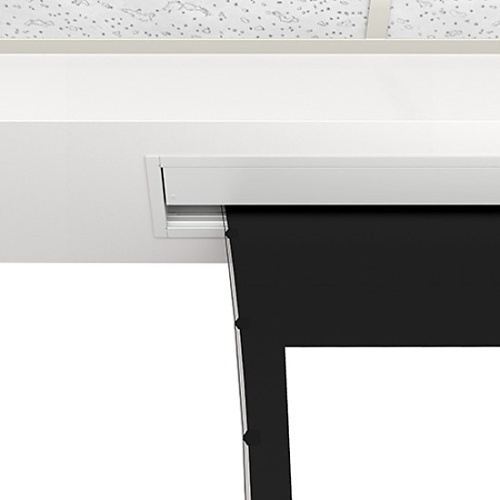

Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Tensioned screens ensure the smoothest surface possible. The Tensioned Advantage® Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage. The Tensioned Advantage Electrol does not include the automatic closure door. See Tensioned Advantage Deluxe Electrol for the additional aesthetic of the automatic closure door.
Main Features
- All sizes standard with 12" of black drop except for Parallax which is standard with 2".
- Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10'x10')
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
- Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
- Support includes a comprehensive five-year warranty to keep you confident in your purchase
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Tensioning Cable System to prevent warping and ensure even lateral tension
General Information
Specifications
ADI Part Number HI-21792LS Brand Name Da-Lite by Legrand Manufacturer Legrand Group Manufacturer Part Number 21792LS Product Line Tensioned Advantage Electrol Product Name Tensioned Advantage Electrol Projection Screen Product Type Projection Screen
Diagonal Image Size 106" Screen Folding Mechanism Electric
TAA Compliant Yes
Aspect Ratio 16:9
Certifications TAA
Color Black, White Dimensions 117 x 13 x 10" Height 52" Width 92.1"
Mount Type Ceiling Mount
Limited Warranty 5-Year
Country of Origin US Environmental Certification GREENGUARD Gold Environmentally Friendly Yes Package Contents - Tensioned Advantage Electrol Projection Screen
- Tensioning Cable System
- Three-button Wall Switch
- 1 x Installation kit
