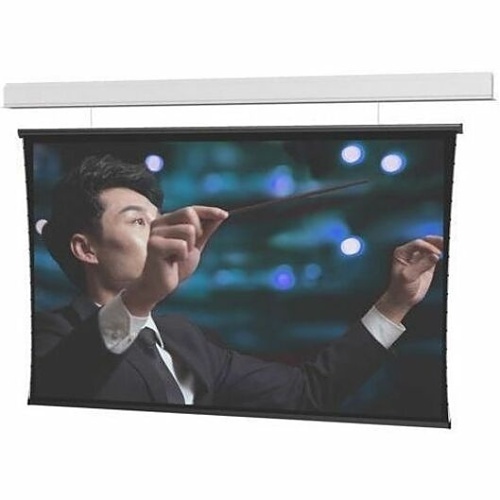

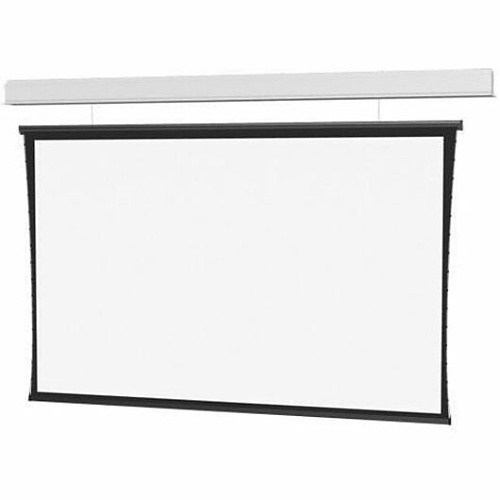

Da-Lite 29875G Wireline Advantage Projection Screen, In-Ceiling Mounted, 226"

Da-Lite 29875G Wireline Advantage Projection Screen, In-Ceiling Mounted, 226"

Da-Lite 29875G Wireline Advantage Projection Screen, In-Ceiling Mounted, 226"
29875G | HI-29875G
Please sign in to view pricing and availability and to add to cart.
Product Overview
Designed for large venues, the Wireline uses thin steel cables up to 29 feet instead of black drop to lower the screen to an appropriate viewing height for a clean, aesthetically pleasing presentation. The Wireline Advantage screen features simple in-ceiling installation with sliding brackets and ceiling trim built into the housing. The extra step of concealing the rough opening with ceiling trim is eliminated. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Advantage tensioned screens ensure the smoothest surface possible for high quality image projection.
Main Features
- Up to 29' of cable to acco mmodate appropriate viewing height in rooms with high ceilings
- Available without trim flange for non-ceiling recessed applications
- TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
- UL Plenum rated case
- Standard radio frequency motor with hand-held remote and dry contact interface
- Optional radio frequency control accessories include single channel wall switch and RS-232 interface
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
- Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
General Information
Specifications
ADI Part Number HI-29875G Brand Name Da-Lite by Legrand Manufacturer Legrand Group Manufacturer Part Number 29875G Product Line Wireline Advantage Product Name Wireline Advantage Projection Screen Product Type Projection Screen
Diagonal Image Size 226" Screen Folding Mechanism Electric
Aspect Ratio 16:10
Color Black Dimensions 234 x 18 x 23" Height 120" Width 192"
Mount Type Ceiling Mount, Wall Mount
Certifications TAA Package Contents - Wireline Advantage Projection Screen
- Flangeless Case
TAA Compliant Yes
