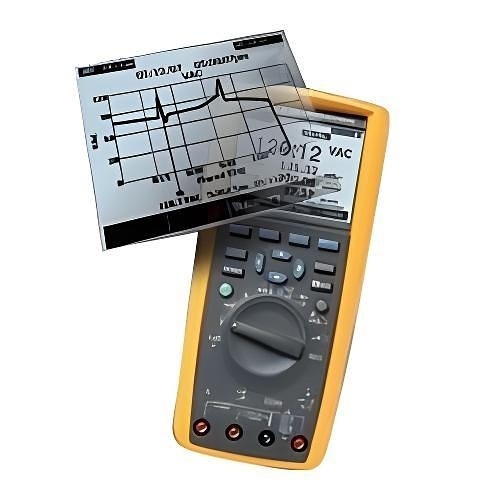

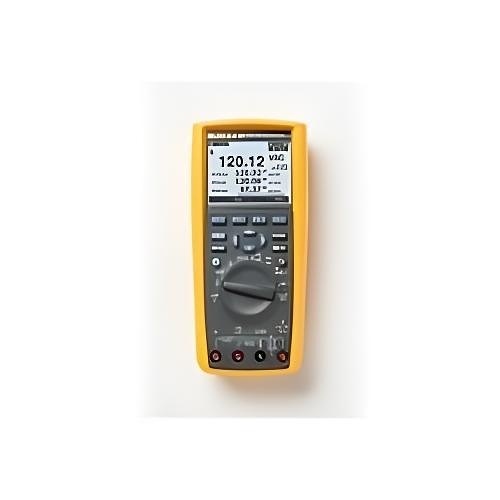

Fluke 2675778 289 True-RMS Data Logging Multimeter
Fluke 2675778 289 True-RMS Data Logging Multimeter
Fluke 2675778 289 True-RMS Data Logging Multimeter
2675778 | HW-2675778
Please sign in to view pricing and availability and to add to cart.
Product Overview
Find Little Problems Before They Become Big Ones. The industrial meter for demanding users. New diagnostic functionality for maximizing productivity in the plant. The new 289 is the next generation high performance industrial logging multimeter designe d to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems. Be sure to also check out the Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture designed for electronics professionals. Maximize productivity with the combined Fluke 289 and FlukeView forms combo kit. With built-in data logger and TrendCapture capability, the 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Overlay y our logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring applications in FVF software. Turn your data into meaningful graphs and tables for a professional report. The 289/FVF combo kit gives you a practical and affordable approach to predictive maintenance.
Main Features
- Large 50,000 count, VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time
- Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC
- Log multiple sessions or log data continuously for over 200 hours. This is useful for characterizing the performance of a design or for unattended monitoring
- LoZ Volts. Low impedance voltage function prevents false readings due to "ghost voltage." It is also the recommended mode when testing for absence or presence of live power
- Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- 50 ohms range useful for measuring and comparing differences in motor winding resistance, low ohm measurements, or other contact resistance. Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current
- Saved measurements allow you to name and recall measurements made in the field
- Real Time Clock for automatic time stamping of saved readings
- Field upgradeable and expandable meter lets you stay current as new capabilities are added
- Multi-lingual interface
General Information
Specifications
ADI Part Number HW-2675778 Brand Name Fluke Manufacturer Part Number 2675778
