Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White
DS-2CD6D52G0-IHS(2.8MM)|HX-OD6D52G02
Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White
DS-2CD6D52G0-IHS(2.8MM)|HX-OD6D52G02
Hikvision
Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White
DS-2CD6D52G0-IHS(2.8MM) | HX-OD6D52G02
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

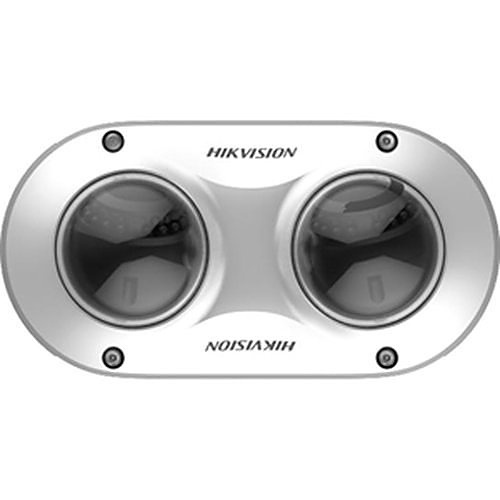

The Hikvision PanoVu DS-2CD6D52G0-IHS Dual- Directional PanoVu Camera features a dual-lens design to capture two separate wide angle views. Other features include H.265 video compression, audio I/O, an internal microSD memory card slot (up to 256 GB), and an IR range of up to 33 feet (10 meters).
Main Features
- 1/2.7" Progressive Scan CMOS
- Dual lens, dual CPU
- Flexible Lens: P: -90 to 90°; T: 0 to 60° (2.8 mm), 0 to 70° (4/6 mm); R: 0 to 355°
- H.265, H.265+, H.264, H.264+
- 2560 × 1920 @ 30fps
- 120dB WDR
- Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
- IP67, IK10
General Information
Name: Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White
Category: Hikvision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 842571130737
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number HX-OD6D52G02 Brand Name Hikvision Manufacturer Hikvision Manufacturer Part Number DS-2CD6D52G0-IHS2.8MM Product Line Panoramic Product Model DS-2CD6D52G0-IHS Product Name Dual-Directional Multi-Sensor PanoVu Camera Product Series DeepInView Product Type Network Camera Weight 1.70 lb
Effective Camera Resolution 5MP Field of View horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 32.81 ft Wide Dynamic Range Yes
Maximum Video Resolution 2560 x 1920
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 1 Second Shortest Shutter Speed 1/100000 Second
Network (RJ-45) Yes
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.8 mm
Remote Management Yes
Color White Durability Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof Form Factor Panoramic Height 3.3" Width 6.5"
Input Voltage 12V DC
Length 2.7" Mount Type Wall Mount
Storage Type Memory Card
Country of Origin CN Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Features 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Day/Night, Defog, Electronic Image Stabilization, Heater, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
