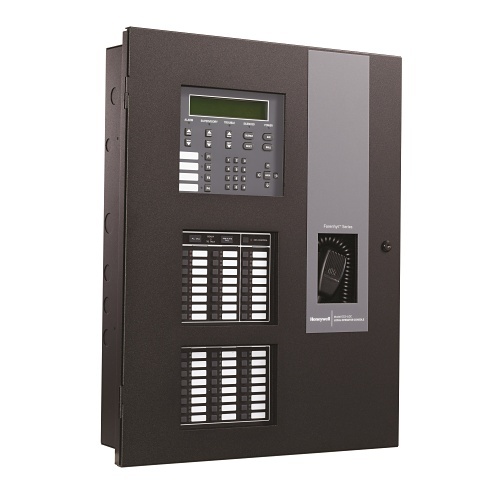

Farenhyt ECS-LOCB Local Operating Console, Black
Farenhyt ECS-LOCB Local Operating Console, Black
Farenhyt ECS-LOCB Local Operating Console, Black
ECS-LOCB | I2-ECSLOCB
Please sign in to view pricing and availability and to add to cart.
Product Overview
The ECS-LOC is a combination of supervised remote microphone and annunciator which is compatible with the Farenhyt Series Emergency Communication System and meets UL requirements for a Local Operator Console. The ECS-LOC provides an interface to the ECS Series Emergency Communication Systems. It includes a supervised on-board microphone for live communications and its annunciator is capable of performing complete operation of the fire alarm system, including silencing and resetting. The console's emergency communication system operations includes an onboard supervised microphone and buttons that allow you to quickly select all active or all nonactive output groups. The system also lets you select an ECS message as a priority over fire.
Main Features
- programmable trigger inputs from an external source, such as a Monaco system, to either the ECS-RVM or 5880. Up to eight inputs available on the 5880 module
- A'er the main panel unit, up to 15 ECS-LOC2100’s can be added to provide a total of 15 co mmand units
- The ECS-LOC2100 or ECS-LOC2100B meets the requirements for a LOC
- Up to 128 mappable speaker circuits using a combination of ECS-50W, ECS-125W or ECS-DUAL50W’s mappable to 64 buttons controlling selected output groups
- All Call and Non-Active Call buttons to quickly select all active or all the non-active output
- Six-wire connection to ECS system; Two-wires for the voice bus, and four-wires for the SBUS connections
- groups
General Information
Specifications
ADI Part Number I2-ECSLOCB Brand Name Honeywell Farenhyt Series Manufacturer Part Number ECS-LOCB
Color Black
