Farenhyt IDP-MINIMON Addressable Mini Monitor Module
IDP-MINIMON|I2-IDPMINIMO
Farenhyt IDP-MINIMON Addressable Mini Monitor Module
IDP-MINIMON|I2-IDPMINIMO
Honeywell Farenhyt Series
Farenhyt IDP-MINIMON Addressable Mini Monitor Module
IDP-MINIMON | I2-IDPMINIMO
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

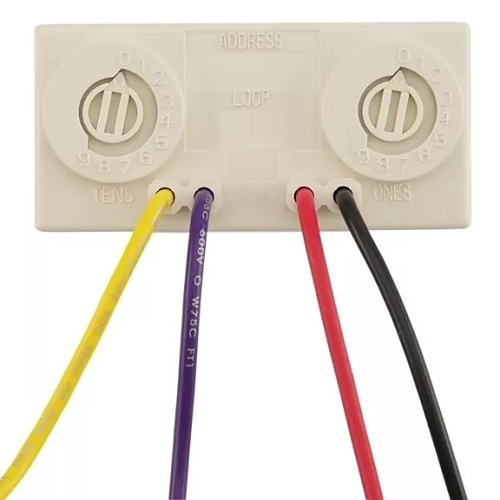

The IDP-MINIMON is a compact and light weight addressable monitor module for use with Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-MINIMON acts as an interface to contact devices, such as waterflow switches and pull stations. The IDP-MINIMON supports Class B supervised wiring to the load device. Conventional 4-Wire smoke detectors can be monitored for alarm and trouble conditions.
Main Features
- Single contact monitor
- Small and lightweight size allows for flexible mounting options
- Support for Class B wiring
- Fully supervised
- Rotary address switches for fast installation
- Analog communications
General Information
Name: Farenhyt IDP-MINIMON Addressable Mini Monitor Module
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 783863027819
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number I2-IDPMINIMO Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-MINIMON
Environmental Certification UL Environmentally Friendly Yes Features Analog communications, Fully supervised, Rotary address switches for fast installation, Single contact monitor, Small and lightweight size allows for flexible mounting options, Support for Class B wiring
