Farenhyt IDP-MONITOR-10 Addressable Monitor Input Module for 10 Inputs
IDP-MONITOR-10|I2-IDPMONIT0
Farenhyt IDP-MONITOR-10 Addressable Monitor Input Module for 10 Inputs
IDP-MONITOR-10|I2-IDPMONIT0
Honeywell Farenhyt Series
Farenhyt IDP-MONITOR-10 Addressable Monitor Input Module for 10 Inputs
IDP-MONITOR-10 | I2-IDPMONIT0
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

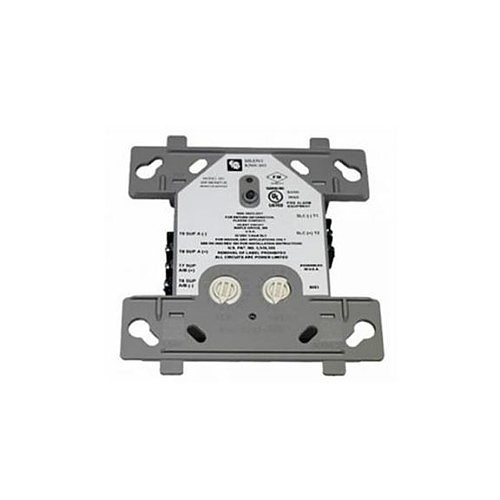

The IDP-MONITOR-10 is a 10 point addressable monitor module for use with the Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-MONITOR-10 acts as an interface to contact devices, such as waterflow switches and pull stations. The multiple input design allows for easy and efficient installation. The IDP-MONITOR-10 supports ten Class B supervised contact inputs or five Class A supervised contact inputs. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
Main Features
- 10 contact monitor
- Support for Class A and Class B wiring
- Fully supervised
- LED indicator for each input
- Disable unused addresses
- Mount up to two modules in one accessory cabinet (PN IDP-ACB)
- Rotary address switches for fast installation
- Removable 12 to 18 AWG plug in terminal blocks for easy wiring and troubleshooting
- Mounting hardware included
General Information
Name: Farenhyt IDP-MONITOR-10 Addressable Monitor Input Module for 10 Inputs
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 783863027727
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number I2-IDPMONIT0 Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-MONITOR-10
