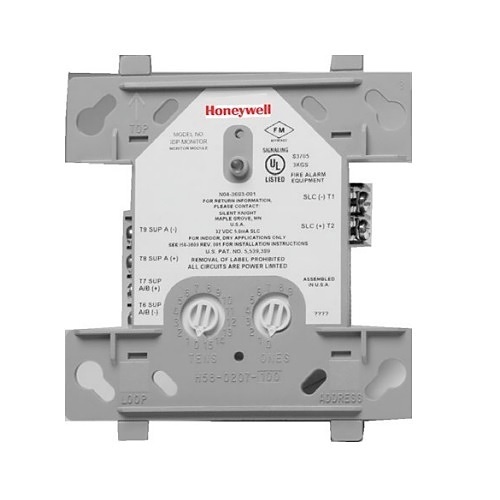

Farenhyt IDP-MONITOR Addressable Input Monitor Module on Plate
IDP-MONITOR|I2-IDPMONITO
Farenhyt IDP-MONITOR Addressable Input Monitor Module on Plate
IDP-MONITOR|I2-IDPMONITO
Honeywell Farenhyt Series
Farenhyt IDP-MONITOR Addressable Input Monitor Module on Plate
IDP-MONITOR | I2-IDPMONITO
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The IDP-MONITOR is an addressable monitor module for use with the Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-MONITOR acts as an interface to contact devices, such as waterflow switches and pull stations.The IDP-MONITOR supports Class A supervised or Class B supervised wiring to the load device. Conventional 4-Wire smoke detectors can be monitored for alarm and trouble conditions.
Main Features
- Isolates short circuits on an SLC loop
- Protects the modules on the SLC loop so other devices continue to operate
- Panel controlled status LED that flashes green in normal state and is solid red in alarm
- Standard 4" electrical box mounting
- SEMS screws for easy wiring
General Information
Name: Farenhyt IDP-MONITOR Addressable Input Monitor Module on Plate
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 783863027666
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number I2-IDPMONITO Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-MONITOR
Color Green, Red Depth 1.25" Height 4.5"
