Product Overview

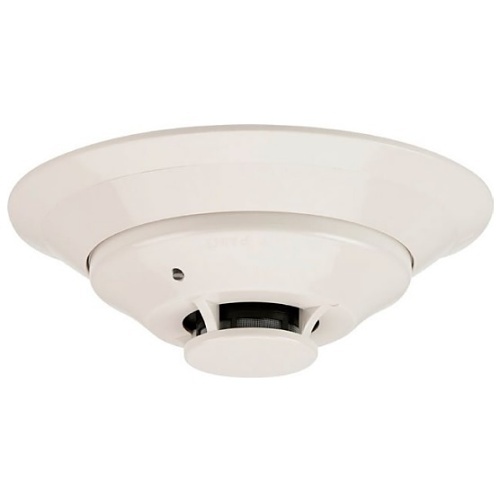

The IDP-PHOTO-T-W is an intelligent plug-in smoke detector with build-in 135 F (57 C) fixted-tempurature thermal device for use with the Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-PHOTO Series has a unique optical sensing chamber that is engineered to sense smoke produced by a wide range of combustion sources.Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector’s address to be set with rotary address switches, providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels.
Main Features
- Reliable analog communications for trouble-free operation
- Age resistant polymer housing
- Dual electronic thermistor design on the IDP-Photo-T
- Superior EMI resistance for reliability
- Simple field cleaning for code compliance
- Variety of mounting options to meet any application
- Dual LED indicators for 360º visibility
- Detector transmits signal to indicate maintenance is required
- Optional remote LED annunciator (System Sensor® PN RA100Z)
- Plug-in mounting provides ease of installation
General Information
Specifications
ADI Part Number I2-IDPPHOTTW Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-PHOTO-T-W Product Model IDP-PHOTO-T-W
Connectivity Technology Wired Sensor Type Photoelectric
Color White Height 2.0"
Diameter 6.2"
