Farenhyt IDP-RELAY-6 Intelligent 6-Relay Module
Farenhyt IDP-RELAY-6 Intelligent 6-Relay Module
Farenhyt IDP-RELAY-6 Intelligent 6-Relay Module
IDP-RELAY-6 | I2-IDPRELAY6
Please sign in to view pricing and availability and to add to cart.
Product Overview

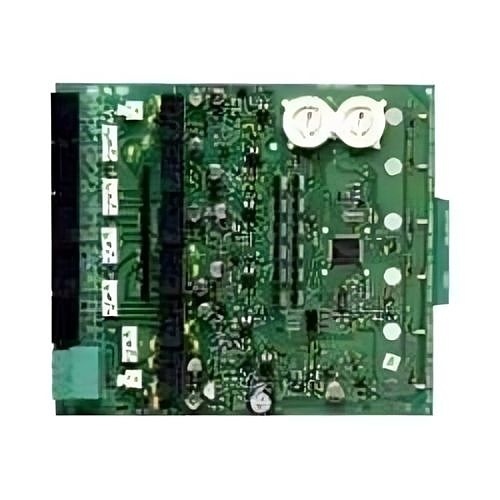

The IDP-RELAY-6 is an addressable relay module for use with Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-RELAY-6 has six Form C relays. It allows a Farenhyt FACP to switch discrete contacts by code command. If needed, you can disable a maximum of three unused modules on the IDP-RELAY-6 board. No supervision is provided for the notification appliance circuit. The IDP-RELAY-6 contacts can be used for virtually any normally open or normally closed application. Each IDP-RELAY-6 is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the IDP-RELAY-6, the relay is triggered by the FACP.
Main Features
- Six Form C contacts
- Removable 12 to 18 AWG plug-in terminal blocks
- Relay programming is completely flexible- can be mapped to zone conditions
- Individual LED for each relay contact
- Two module mounting in the IDP-ACB cabinet
- Up to three unused modules can be disabled
- Rotary address switches for fast installation
- Mounting hardware included
- UL Listed
General Information
Specifications
ADI Part Number I2-IDPRELAY6 Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-RELAY-6 Sector Fire
