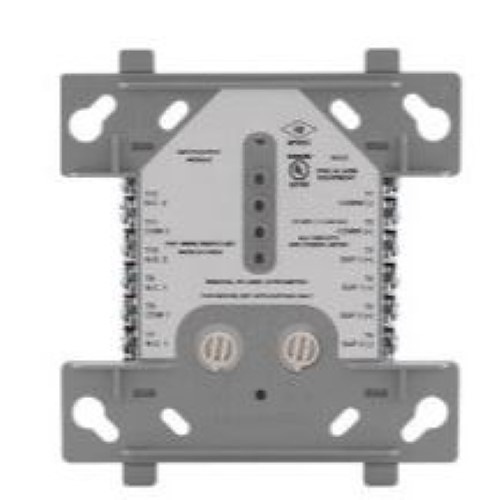

Farenhyt IDP-RELAYMON-2 Dual Monitor Module with 2-Relay Outputs
Farenhyt IDP-RELAYMON-2 Dual Monitor Module with 2-Relay Outputs
Farenhyt IDP-RELAYMON-2 Dual Monitor Module with 2-Relay Outputs
IDP-RELAYMON-2 | I2-IDPRELAYM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The IDP-RELAYMON-2 multi output-input module is designed for use with the Honeywell Farenhyt Series fi re alarm control panels (FACPs). The addressable module is intended for use in intelligent, two-wire loops. It includes two individual relay control modules and two Class B monitor modules. Each relay output is intended for Form C switching applications which do not require wiring supervision for the load circuit. Each monitor input provides an interface between a fi re alarm control panel and one or more normally open contact-type devices. Each relay output has its own green LED.
Main Features
- Monitor two circuits with unique addresses simultaneously
- Two Form C relay contacts with each having a unique address
- Rotary address switches for fast installation
- Support for Class B wiring
- Bright white cover plate
- SEMS screws for easy wiring
- UL listed
General Information
Specifications
ADI Part Number I2-IDPRELAYM Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-RELAYMON-2 Sector Fire
Color Green, White
