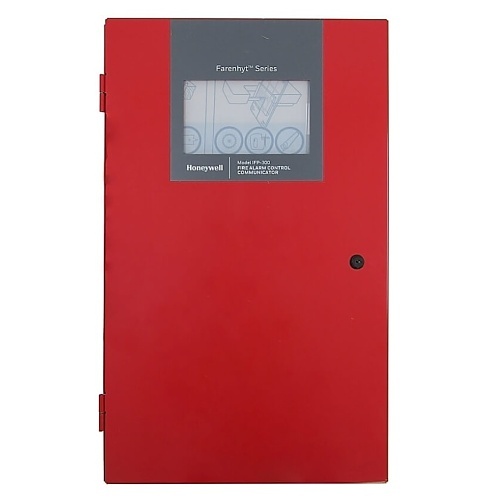

Farenhyt IFP-300 Addressable Fire Alarm Control Panel, Red Cabinet
Farenhyt IFP-300 Addressable Fire Alarm Control Panel, Red Cabinet
Farenhyt IFP-300 Addressable Fire Alarm Control Panel, Red Cabinet
IFP-300 | I2-IFP300
Please sign in to view pricing and availability and to add to cart.
Product Overview
The IFP-300 is an intelligent 300 point analog/addressable fire alarm control panels (FACP) and are direct replacements for the IFP-100 FACP. The IFP-300 panel contains one built-in signaling line circuit (SLC), which can support 159 (IDP/SK) System Sensor sensors and 159 IDP/SK modules or 127 (SD) Hochiki devices per loop. Additional SLC loops can be added using the model 6815 SLC expander for SK/IDP devices to increase the overall point capacity to a maximum of 300 points per panel, or model 5815XL for SD devices to increase the overall point capacity to a maximum of 254 points per panel.
Main Features
- Network support for up to 32 Sites
- Built-in support for up to 159 IDP/SK detectors and 159 IDP/SK modules or 127 SD SLC devices
- Four line LCD display with 40 characters per line
- Available in a red or black cabinet
- Can be surface or flush mounted
- Built-in USB interface for convenient and quick programming
- Firmware can be upgraded in the field
- Network card allows copper network connection with a multi-mode or single-mode fiber connection option
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- JumpStart auto programming feature for easy programming
General Information
Specifications
ADI Part Number I2-IFP300 Brand Name Honeywell Farenhyt Series Manufacturer Part Number IFP-300 Product Type Fire Alarm Control Panel
Color Black, Red
Environmental Certification UL Environmentally Friendly Yes Features Available in a red or black cabinet, Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies, Built-in support for up to 159 IDP/SK detectors and 159 IDP/SK modules or 127 SD SLC devices, Built-in USB interface for convenient and quick programming, Can be surface or flush mounted, Firmware can be upgraded in the field, Four line LCD display with 40 characters per line, JumpStart auto programming feature for easy programming, Network card allows copper network connection with a multi-mode or single-mode fiber connection option, Network support for up to 32 Sites
