Product Overview

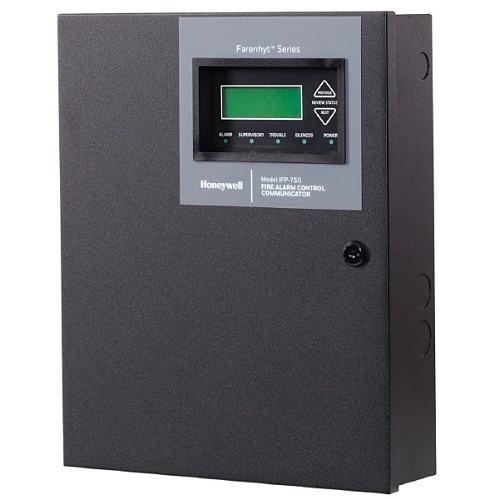

The IFP-75 is a 75 point addressable fire alarm control panels (FACP) and are direct replacements for the IFP-50 FACP. The IFP-75 has one signaling line circuit (SLC) loop for connecting addressable detectors, which can support 75 System Sensor IDP/SK sensors and 75 IDP/SK modules or 75 Hochiki SD devices per loop. The total point capacity for IDP and SK device is a maximum of 150 points per panel. Using SD device. The total point capacity is a maximum of 75 points per panel.
Main Features
- Network support for up to 32 Sites
- Built-in support for up to 75 IDP/SK detectors and 75 IDP/SK modules or 75 SD SLC devices
- Four-line LCD display with 40 characters per line
- Available in a red or black cabinet
- Can be surface or flush mounted
- Built-in USB interface for convenient and quick programming
- Programmable date setting for Daylight Saving Time
- JumpStart auto programming feature for easy programming
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- Network card allows copper network connection with a multi-mode or single-mode fiber connection option
General Information
Name: Farenhyt IFP-75 Addressable Fire Alarm Control Panel, Red Cabinet
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783196014241
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number I2-IFP75 Brand Name Honeywell Farenhyt Series Manufacturer Part Number IFP-75 Product Type Fire Alarm Control Panel
Color Black, Red
Environmental Certification UL Environmentally Friendly Yes Features Available in a red or black cabinet, Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies, Built-in support for up to 159 IDP/SK detectors and 159 IDP/SK modules or 127 SD SLC devices, Built-in USB interface for convenient and quick programming, Can be surface or flush mounted, Firmware can be upgraded in the field, Four line LCD display with 40 characters per line, JumpStart auto programming feature for easy programming, Network card allows copper network connection with a multi-mode or single-mode fiber connection option, Network support for up to 32 Sites
