Farenhyt OSI-RI-FH Intelligent Single-Ended Reflective Imaging Beam Smoke Detector
OSI-RI-FH|I2-OSIRIFH
Farenhyt OSI-RI-FH Intelligent Single-Ended Reflective Imaging Beam Smoke Detector
OSI-RI-FH|I2-OSIRIFH
Honeywell Farenhyt Series
Farenhyt OSI-RI-FH Intelligent Single-Ended Reflective Imaging Beam Smoke Detector
OSI-RI-FH | I2-OSIRIFH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

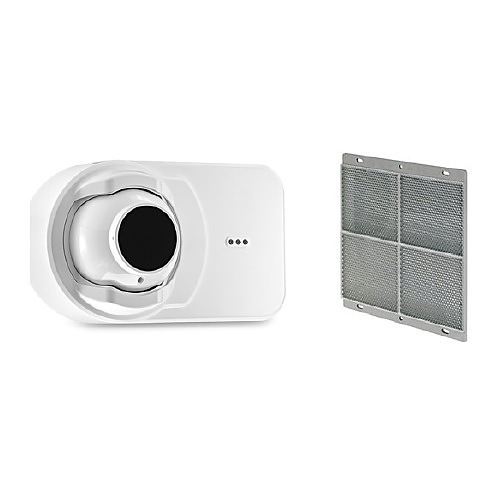

The OSI-RI-FH intelligent addressable reflector-type linear optical beam smoke detector is uniquely suited for protecting large open areas with high ceilings where spot-type smoke detectors are difficult to install and maintain. Ideal applications are warehouses, malls, aircraft hangers, arenas and concert halls. The beam operates primarily on the principle of light obscuration using infrared. The OSI-RI-FH detector is a combined transmitter/receiver and is compatible with IFP Series and Farenhyt Series Black fire alarm control panels in IDP mode.
Main Features
- Fast and Easy Alignment
- Resistant to Building Movement, Sunlight, and Foreign Object Intrusion
- Time-saving Automatic Sensitivity Setting
- Drift Compensation
- Equipped with Built-in Imager Heater
- Combined transmitter/receiver unit
- Wide 12° field of view
- 50° horizontal and 20° vertical beam adjustment
- Long range coverage of 16-328 ft (5-100m) is standard; no separate long-range kit required
- Automatic sensitivity threshold level setting
General Information
Name: Farenhyt OSI-RI-FH Intelligent Single-Ended Reflective Imaging Beam Smoke Detector
Category: Honeywell Farenhyt Series, Fire, Fire Detection Devices, Beam Smoke Detectors
UPC Code: 783863053078
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number I2-OSIRIFH Brand Name Honeywell Farenhyt Series Manufacturer Part Number OSI-RI-FH Product Type Smoke Detector
Color Black
