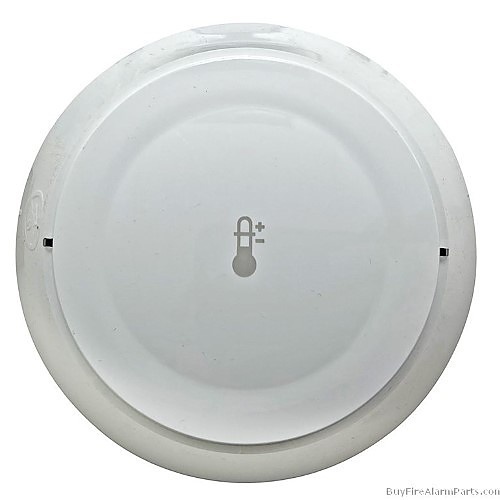

Image of I2-WIDPHEATR
Honeywell Farenhyt Series

Farenhyt WIDP-HEAT-ROR Swift Wireless Heat Rate-of-Rise Detector

WIDP-HEAT-ROR|I2-WIDPHEATR
Honeywell Farenhyt Series

Farenhyt WIDP-HEAT-ROR Swift Wireless Heat Rate-of-Rise Detector

WIDP-HEAT-ROR|I2-WIDPHEATR

Sign In for Dealer Pricing

Become an ADI Customer
Image of I2-WIDPHEATR
Honeywell Farenhyt Series

Farenhyt WIDP-HEAT-ROR Swift Wireless Heat Rate-of-Rise Detector

WIDP-HEAT-ROR | I2-WIDPHEATR

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

WIDP-HEAT-ROR addressable, wireless rate-of-rise heat detector use a state-of-the-art thermistor sensing circuit for a fast response. The WIDP-HEAT provide rate-of-rise temperature alarm detection at 135°F. The WIDP-HEAT also provides Rate-of-Rise Detection at 15⁰F/min. The WIDP-HEAT communicate with the fire alarm control panel (FACP) through a wireless mesh network to the W-GATE wireless gateway. Intelligent wireless rate of rise (135°) heat detector. Ships with B501W base included. Requires (4) CR-123A batteries (included). SWIFT wireless detectors are intelligent (addressable) detectors which provide secure, reliable communication to the Fire Alarm Control Panel (FACP) across a Class A mesh network. Wireless detectors create an opportunity for applications where it is costly (concrete walls/ceilings, buried wires), obtrusive (surface mount conduit), or possibly dangerous (asbestos) to use traditional wired devices. In addition, both wired and wireless devices can be present on the same FACP providing an integrated wiredwireless solution for increased installation potential.

Main Features

  • Includes a B501W base
  • Requires 4 Panasonic CR123A or 4 Duracell DL123A batteries (included)
  • SK Protocol only. SWIFT does not work with SD Protocol
  • Can also be combined with hard-wired devices
  • It is highly recommended that the W-USB transceiver with SWIFT Tools be used to make the site survey, installation, and diagnostics easier to complete and interpret

General Information

Name: Farenhyt WIDP-HEAT-ROR Swift Wireless Heat Rate-of-Rise Detector
Category: Honeywell Farenhyt Series, Fire, Fire Detection Devices, Heat Detectors
UPC Code: 783863050268
Country of Origin: MX. Country of origin is subject to change.

Specifications

Product Documents and Resources
