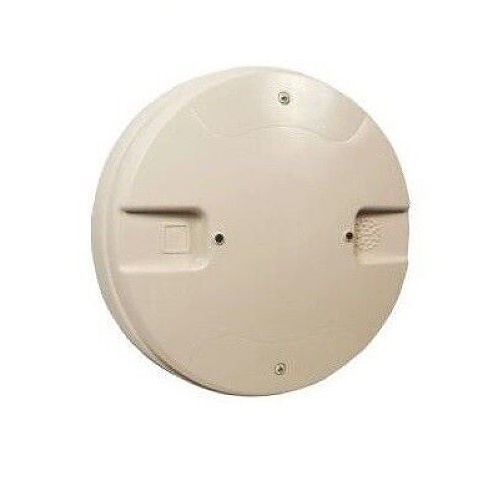

Farenhyt WIDP-WGI Swift Wireless Fire System Gateway
Farenhyt WIDP-WGI Swift Wireless Fire System Gateway
Farenhyt WIDP-WGI Swift Wireless Fire System Gateway
WIDP-WGI | I2-WIDPWGI
Please sign in to view pricing and availability and to add to cart.
Product Overview
Wireless SWIFT Gateway - 1 SWIFT Gateway is required for each wireless mesh, and supports up to 49 SWIFT detectors or modules. Connects to the SLC loop of a compatible panel using SK protocol. Power may be supplied by the SLC circuit or via an optional 24VDC input. SWIFT wireless detectors are intelligent (addressable) detectors which provide secure, reliable communication to the Fire Alarm Control Panel (FACP) across a Class A mesh network. Wireless detectors create an opportunity for applications where it is costly (concrete walls/ceilings, buried wires), obtrusive (surface mount conduit), or possibly dangerous (asbestos) to use traditional wired devices. In addition, both wired and wireless devices can be present on the same FACP providing an integrated wiredwireless solution for increased installation potential.
Main Features
- Wireless mesh technology (902-928 MHz frequency)
- Any wireless device can be added to act as a repeater
- Cascading-wave mesh operation provides a verification of redundant communication paths
- Each SWIFT gateway system supports up to 50 devices: 1 wireless gateway and up to 49 devices
- Standard "code wheel" for setting the SLC address
- Up to 4 wireless networks can be installed with overlapping radio network coverage
- Site Survey feature allows for an evaluation of a site before the installation
- Wireless devices use (4) CR-123A lithium batteries
- Battery Life - UL listed for 2 years
General Information
Specifications
ADI Part Number I2-WIDPWGI Brand Name Honeywell Farenhyt Series Manufacturer Part Number WIDP-WGI
