3xLOGIC VX-5M4-MD-IAW-S512 VISIX 5MP IR Indoor/Outdoor Vandal Proof Mini-Dome Camera with 512GB SD Card, True WDR, 4mm Fixed Lens
VX-5M4-MD-IAW-S512|IA-VX5M4S512

3xLOGIC VX-5M4-MD-IAW-S512 VISIX 5MP IR Indoor/Outdoor Vandal Proof Mini-Dome Camera with 512GB SD Card, True WDR, 4mm Fixed Lens
VX-5M4-MD-IAW-S512|IA-VX5M4S512

3xLOGIC
3xLOGIC VX-5M4-MD-IAW-S512 VISIX 5MP IR Indoor/Outdoor Vandal Proof Mini-Dome Camera with 512GB SD Card, True WDR, 4mm Fixed Lens
VX-5M4-MD-IAW-S512 | IA-VX5M4S512
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

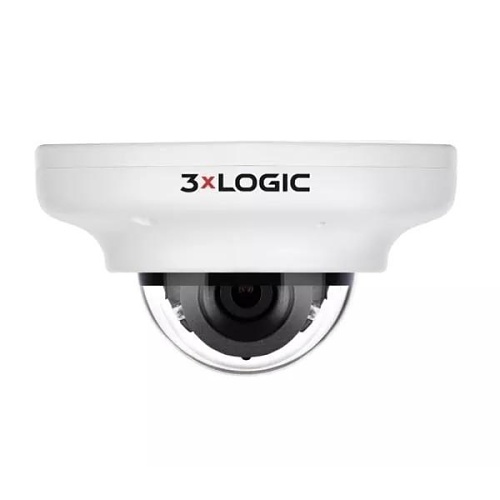

VISIX 5MP, Fixed 4mm Lens, Indoor/Outdoor Vandal Proof Mini-dome with IR and True WDR, IP67/IK10 rated with All-in-One Functionality and 512GB SD Card.
General Information
Name: 3xLOGIC VX-5M4-MD-IAW-S512 VISIX 5MP IR Indoor/Outdoor Vandal Proof Mini-Dome Camera with 512GB SD Card, True WDR, 4mm Fixed Lens
Category: 3xLOGIC, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number IA-VX5M4S512 Brand Name 3xLOGIC Manufacturer Part Number VX-5M4-MD-IAW-S512 Product Line VISIX Product Type Network Camera
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2.0 Maximum Frame Rate 30 fps Minimum Focal Length 4 mm Night Vision Yes Video Resolution Yes
Wide Dynamic Range Yes
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -22°F Operating Humidity 0.9
Longest Shutter Speed 1/15 Second Minimum Illumination 0.06 lux Shortest Shutter Speed 1/32000 Second
Focal Length 4 mm Maximum Focal Length 4 mm
Color Color Durability Dustproof, Waterproof Form Factor Mini Dome Height 2.4"
Input Voltage 12V DC
Diameter 4.1" Mount Type Ceiling Mount, Junction Box Mount, Pendant Mount, Wall Mount
Storage Type Memory Card
Limited Warranty 4 Year
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Indoor/Outdoor Indoor, Outdoor Ingress Protection Rating IP67
