JBL Professional AW266-LS Speaker, 12" 2-Way All Weather Loudspeaker with EN54-24 Certification
JBL Professional AW266-LS Speaker, 12" 2-Way All Weather Loudspeaker with EN54-24 Certification
JBL Professional AW266-LS Speaker, 12" 2-Way All Weather Loudspeaker with EN54-24 Certification
AW266-LS | JF-AW266LS
Please sign in to view pricing and availability and to add to cart.
Product Overview

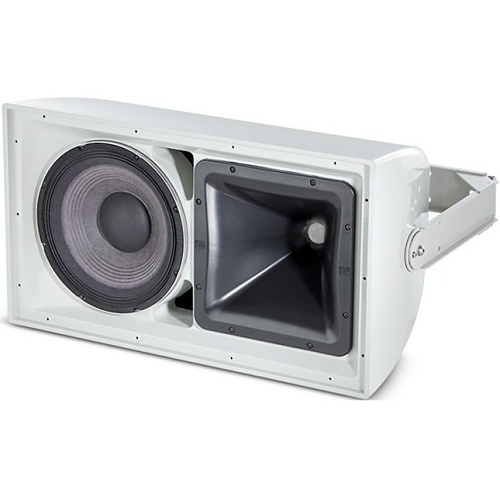

Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 12"" LF for Life Safety Applications
The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
Main Features
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 60° x 60° Coverage
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
General Information
Specifications
ADI Part Number JF-AW266LS Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number AW266-LS Product Model AW266-LS Product Name High Power 2-Way All Weather Loudspeaker with 1 x 12" LF Product Series AW Product Type Speaker Weight 55.56lb
Crossover Type 2-way Impedance 8 ohms Sensitivity 98dB
Maximum Frequency Response 18 kHz Minimum Frequency Response 102Hz RMS Output Power 400W
Application/Usage Cruise Ship, Entertainment Center, Park, Sports Field, Theme Bar Color Gray Depth 17.8" Durability Corrosion Resistant, Weather Resistant Height 16.1" Size 12" Width 28.8"
Country of Origin MX Features Dual Voice Coils, Lightweight Indoor/Outdoor Outdoor Package Contents - High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
- U-type Mounting Bracket
