Product Overview

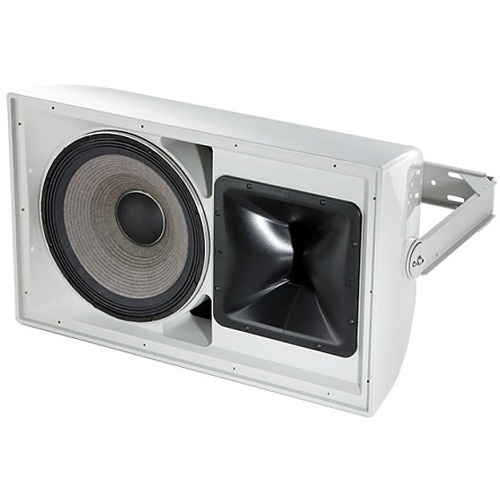

Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF for Life Safety Applications
The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 400 W 70/100V transformer.
Main Features
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 120° x 60° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
General Information
Specifications
ADI Part Number JF-AW526LS Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number AW526-LS Product Model AW526-LS Product Name High Power 2-Way All Weather Loudspeaker with 1 x 15" LF Product Series AW Product Type Speaker Weight 62.39lb
Crossover Type 2-way Impedance 8 ohms Sensitivity 100dB
Maximum Frequency Response 17 kHz Minimum Frequency Response 86Hz RMS Output Power 400W
Application/Usage Cruise Ship, Entertainment Center, Park, Sports Field, Theme Bar Color Gray Depth 18.82" Durability Corrosion Resistant, Weather Resistant Height 19.1" Size 15" Width 31.9"
Country of Origin MX Features Dual Voice Coils, Lightweight Indoor/Outdoor Outdoor Package Contents - High Power 2-Way All Weather Loudspeaker with 1 x 15" LF
- U-type Mounting Bracket
