Image of JF-AW526LSBK
JBL Professional

JBL Professional AW526-LS-BK Speaker, 15" 2-Way All Weather Loudspeaker with EN54-24 Certification

AW526-LS|JF-AW526LSBK
JBL Professional

JBL Professional AW526-LS-BK Speaker, 15" 2-Way All Weather Loudspeaker with EN54-24 Certification

AW526-LS|JF-AW526LSBK

Sign In for Dealer Pricing

Become an ADI Customer
Image of JF-AW526LSBK
JBL Professional

JBL Professional AW526-LS-BK Speaker, 15" 2-Way All Weather Loudspeaker with EN54-24 Certification

AW526-LS | JF-AW526LSBK

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Applications:

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

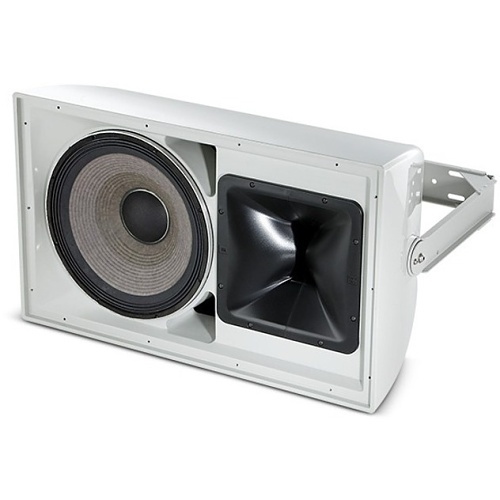

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system can be operated as an 8- ohm device and is equipped with a 400W transformer for 70/100V applications.

A corrosion-resistant extra-thick zincplated polyester powder coated U-type mounting bracket is included.

The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 16-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments.

The AW526-LS is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Main Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN54-24 Compliant
  • 120° x 60° Coverage
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in Gray and Black finish

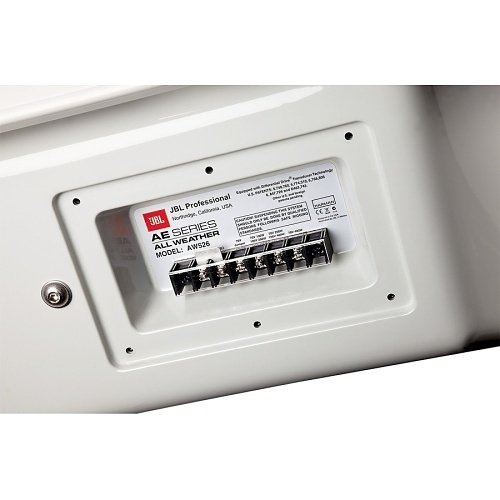

  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

General Information

Name: JBL Professional AW526-LS-BK Speaker, 15" 2-Way All Weather Loudspeaker with EN54-24 Certification
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 691991014291
Country of Origin: Mexico. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Manufacturer Brochure
