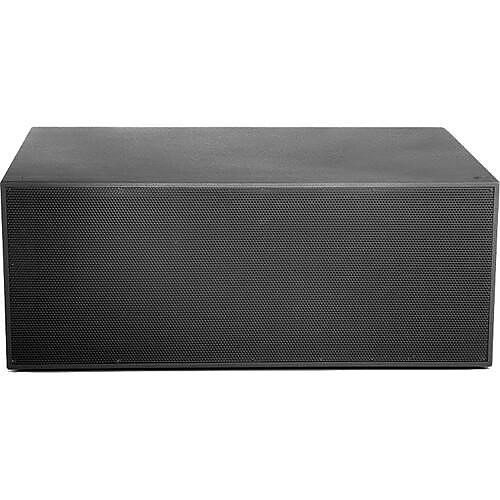

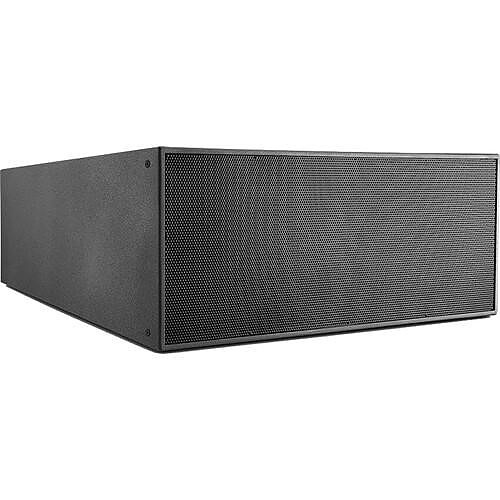

JBL Professional JBL-P3266MX 3-Way Horn-Loaded Array System, High Output Full Range Linear Array Loudspeaker System
JBL Professional JBL-P3266MX 3-Way Horn-Loaded Array System, High Output Full Range Linear Array Loudspeaker System

JBL Professional JBL-P3266MX 3-Way Horn-Loaded Array System, High Output Full Range Linear Array Loudspeaker System
JBL-P3266MX | JF-JBLP3266M
Please sign in to view pricing and availability and to add to cart.
Product Overview

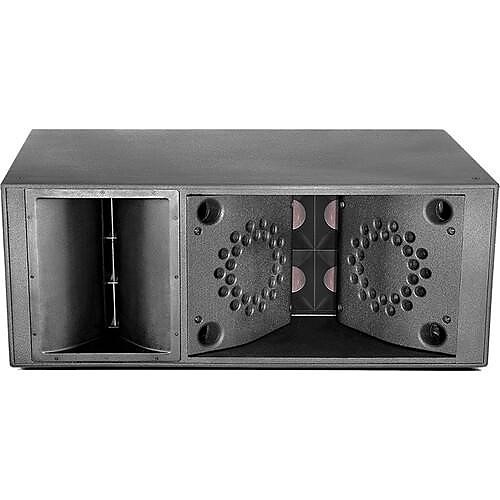

When your large venue requires high-impact sound reinforcement over longer throw distances than traditional loudspeakers, look to the VLA901Hi High-Output from JBL, a passive three-way full-range loudspeaker that, like all members of the innovative VLA series, sports advanced transducer technology for low weight and high output. The VLA901Hi High-Output is optimized for high-output in permanently installed line array systems and features two potent 15" low-frequency drivers, four 8" mid-frequency drivers, and six high-frequency compression drivers with a 1.5" throat exit. The 90 deg horizontal coverage of the VLA901Hi High-Output is ideal for providing large crowds with consistent sound beaming and minimal interference when building up your array. The max total power handling of the system is 2400W peak, giving you plenty of headroom for your external amps. This loudspeaker is designed to handle the versatility needed from a high-performance sound system in virtually any venue with a rugged DuraFlex finish, weatherized transducer components, a durable IPx3 and Mil-Std 810 rating for any indoor or outdoor application, and multiple M10 threaded rigging points on every side of the loudspeaker, so you can build your line array the way you want.
Main Features
- For Sound Installations in Large Venues
- 90 deg Horizontal Coverage
- High-Output, Low-Weight Transducers
- Rugged DuraFlex Finish
- Weatherized Components
- Two 15" Low, Two 8" Mid, Three 1.5" High
- Maximum Peak Power Handling of 2400W
- Barrier Strip for Easy Connectivity
- IPx3 and Mil-Std 810 Rating
- Multiple Rigging Points for Line Array
General Information
Specifications
ADI Part Number JF-JBLP3266M Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number JBL-P3266MX Product Model JBL-P3266MX Product Name JBL VLA Series VLA901Hi High-Output Passive 3-Way Full-Range Loudspeaker Product Series VLA Product Type Speaker Weight 236lb
Crossover Type 3-way Impedance 4 ohms Sensitivity 110dB
Maximum Frequency Response 20 KHz Minimum Frequency Response 41Hz
Color Black Enclosure Type Bass reflex
Limited Warranty 1-Year
Country of Origin MX Environmental Certification IP Features 90 deg Horizontal Coverage, Barrier Strip for Easy Connectivity, For Sound Installations in Large Venues, High-Output, Low-Weight Transducers, IPx3 and Mil-Std 810 Rating, Maximum Peak Power Handling of 2400W, Multiple Rigging Points for Line Array, Rugged DuraFlex Finish, Two 15" Low, Two 8" Mid, Three 1.5" High, Weatherized Components Package Contents JBL VLA Series VLA901Hi High-Output Passive 3-Way Full-Range Loudspeaker, Limited 1-Year Manufacturer Warranty
