Product Overview

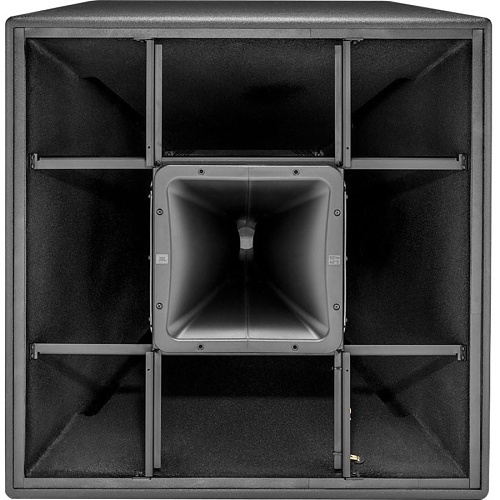

15" Horn-Loaded Full-Range Loudspeaker System
PD544 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
This loudspeaker is EN 54-24 Compliant for life safety applications.
Main Features
- 380 mm (15") horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 40 deg x 40 deg pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
- EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets
General Information
Name: JBL Professional PD544 Pro Speakers,PD500 500W,Black
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers, Pro Subwoofers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number JF-PD544 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD544 Product Model PD544 Product Name 15" Horn-Loaded Full-Range Loudspeaker System Product Series PD500 Product Type Woofer Weight 152.12lb
Impedance 8 ohms Sensitivity 106dB
Maximum Frequency Response 17 kHz Minimum Frequency Response 90Hz RMS Output Power 500W
Application/Usage Auditorium, House of Worship, Sport Center, Stage Color Black Depth 26.37" Height 30.9" Size 15" Width 31.1"
Country of Origin MX Features 380 mm (15) horn-loaded low-frequency driver, EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets, Large PT Progressive Transition waveguides provide broad band 40 deg x 40 deg pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable waveguide allows for either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
