JBL Professional PD566 WH Speaker
PD566 - WH | JF-PD566WH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

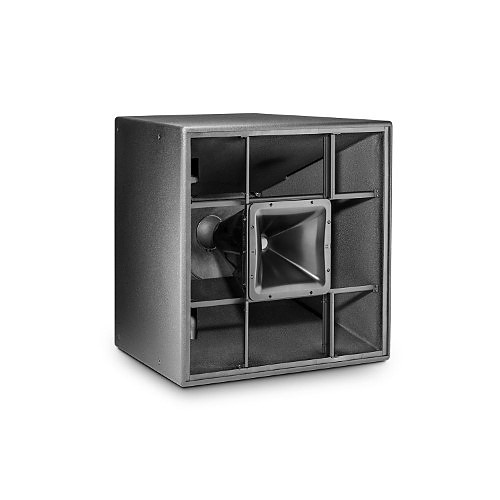

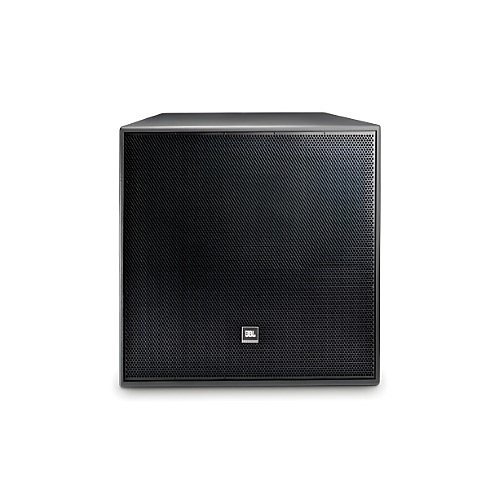

PD566 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD566 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems. This loudspeaker is EN 54-24 Compliant for life safety applications.
Main Features
- 380 mm (15") horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 60 deg x 60 deg pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
- EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets
General Information
Name: JBL Professional PD566 WH Speaker
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers, Pro Subwoofers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number JF-PD566WH Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD566 - WH Product Model PD566 - WH Product Name PD566 15" Horn-Loaded Full-Range Loudspeaker System Product Series PD500 Product Type Speaker System Weight 152lb
Crossover Type 2-way Impedance 8 ohms Sensitivity 104dB
Maximum Frequency Response 17 kHz Minimum Frequency Response 90Hz
Application/Usage Auditoriums, Performance spaces, Sports Facilities, Worship Facilities Color White Depth 26.4" Height 30.8" Width 30.8"
Country of Origin MX Environmental Certification IP Features 380 mm (15") horn-loaded low-frequency driver, EN 54-24 Compliant for life safety applications to serve the needs of hospitality, large venue and other markets, Large PT Progressive Transition waveguides provide broad band 60 deg x 60 deg pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable waveguide allows for either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
