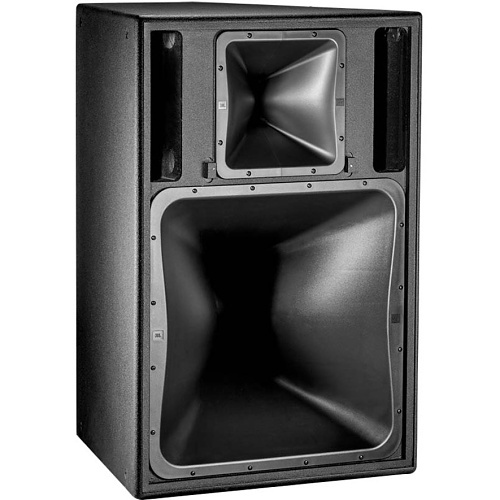

JBL Professional PD6322/95-WH 12" 3-Way Loudspeaker, White
PD6322/95|JF-PD632295W
JBL Professional PD6322/95-WH 12" 3-Way Loudspeaker, White
PD6322/95|JF-PD632295W
JBL Professional
JBL Professional PD6322/95-WH 12" 3-Way Loudspeaker, White
PD6322/95 | JF-PD632295W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Applications:
- Performing arts facilities/Live theaters
- Auditoriums/Houses of worship
- Dance clubs/Sports facilities
The low frequency section, two 2206H 300 mm (12 in) VGC™ Vented Gap Cooled low frequency transducers, offer high power handling and low power compression for high continuous SPL capability. A newly designed LF loading plate provides the highest possible sensitivity, low frequency output and system reliability.
The mid and high frequency sections are horn-loaded for maximum sensitivity and pattern control. The CMCD-82H cone midrange compression driver consists of a driver/phasing plug assembly providing high output with low distortion. The design's extended response coupled with a small 100 mm (4 in) exit diameter allow for smoother transition to the high frequency driver in the magnitude and polar pattern domains. The integral 200 mm (8 inch) cone driver features a high power Differential Drive® dual, voice coil design. The 2432H large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response, and low distortion at even the highest drive levels.
Main Features
- Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz
- High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes
General Information
Name: JBL Professional PD6322/95-WH 12" 3-Way Loudspeaker, White
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 691991005039
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number JF-PD632295W Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD6322/95-WH Product Model PD6322/95 Product Name PD6322/95 High Output Three-Way Full-Range Loudspeaker with 2 x 12" LF Product Series PD Product Type Speaker Weight 169.76lb
Crossover Type 3-way Impedance 8 ohms Sensitivity 114dB
Maximum Frequency Response 15 kHz Minimum Frequency Response 49Hz
Application/Usage Auditorium, Club, House of Worship, Performing Arts Center, Sport Center, Theatre Color White Depth 27.8" Height 39" Size 12" Width 26.5"
Country of Origin MX Environmental Certification IP Features High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes, Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz Indoor/Outdoor Outdoor
