Kramer 41-90043490 FC-69 HDMI Audio Embedder/De-Embedder
FC-69|KR-FC69
Kramer 41-90043490 FC-69 HDMI Audio Embedder/De-Embedder
FC-69|KR-FC69
Kramer Electronics
Kramer 41-90043490 FC-69 HDMI Audio Embedder/De-Embedder
FC-69 | KR-FC69
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

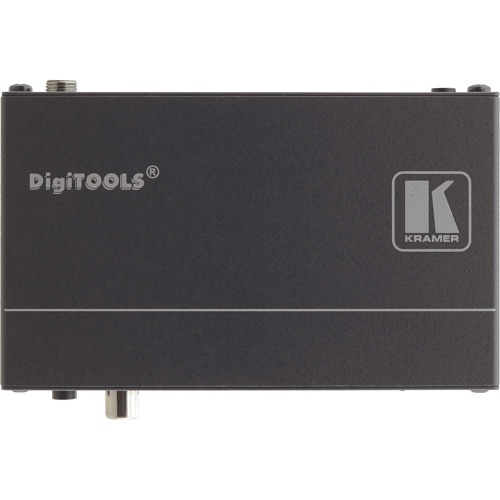

FC-69 is a high-performance 4K at 60 Hz (4:2:0), 4Kx2K HDMI audio embedder and de-embedder. The unit can embed analog audio to the HDMI output or de-embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
Main Features
- Max. Resolution 4K at 60 Hz (4:2:0), 4Kx2K
- Max. Data Rate 8.91 Gbps (2.97 Gbps per data channel)
- HDTV Compatible
- HDCP Compliant
- HDMI Support; ARC, 7.1 PCM, deep color
- Audio Embedding, even without an HDMI source
- Audio de-Embedding; To unbalanced analog and S/PDIF, selectable from input or ARC
- Kramer Equalization and re–Klocking Technology; Rebuilds the digital signal to travel longer distances
- Sleep Mode; 5V on the output, following the input, allows the display to turn off when no video is being sent
- Preconfigured Control Options; DIP-switches control locking/modifying EDID, HDCP, embedding/de-embedding and sleep mode functionality
General Information
Name: Kramer 41-90043490 FC-69 HDMI Audio Embedder/De-Embedder
Category: Kramer Electronics, Pro AV, Commercial Connector Cables, Pro Audio Cables
UPC Code: 729106307256
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number KR-FC69 Brand Name Kramer Electronics Manufacturer Kramer Electronics LTD Manufacturer Part Number 41-90043490 Product Model FC-69 Product Name 4K60 4:2:0 HDMI Audio Embedder/De-Embedder Product Type Signal Extractor Weight 0.44lb
Application/Usage Audio De-embedding, Audio Embedding Depth 2.8" Form Factor Desk Mount, Rack Mount Height 1" Width 4.7"
Mount Type Desk Mount, Rack Mount
