Kramer Galil 4-CO 4" 2-Way Open-Back Ceiling Speaker, 1-Pair
Galil 4-CO|KR-GALIL4COP
Kramer Galil 4-CO 4" 2-Way Open-Back Ceiling Speaker, 1-Pair
Galil 4-CO|KR-GALIL4COP
Kramer Electronics
Kramer Galil 4-CO 4" 2-Way Open-Back Ceiling Speaker, 1-Pair
Galil 4-CO | KR-GALIL4COP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

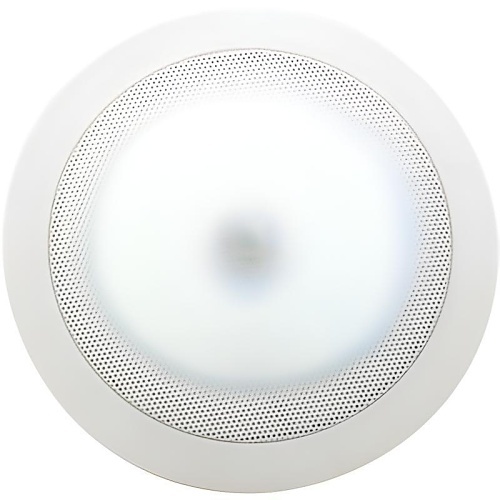

The Galil 4-CO is a pair of two-way, open-back, 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi-tap power transformer for selecting 8Ω or 70V/100V power settings suitable for array installation.
- Type - 2-way coaxial speaker.
- Woofer - 4" polypropylene cone.
- Tweeter - 0.5" Mylar dome.
- Frequency Response - 80Hz to 20kHz@ ±3dB.
- Impedance - 8Ω.
- Power Handling - 15W RMS, 40W continuous program.
- Transformer Taps - 70V: 15W/7.5W/3.7W/Off (Lo-Z); 100V: 15W/7.5W/Off (Lo-Z).
- Package Includes - 2 speakers (1 pair), cutout template and user manual.
- Mounting Bracket (Optional) - SKIC-4.
Main Features
- 4" 2-Way Open-Back Ceiling Speaker
- Multi-tap Power Transformer for 8Ω or 70V/100V
- 4" Polypropylene Cone Woofer
- 0.5" Mylar Dome Tweeter
- Frequency Response: 80Hz to 20kHz
- Impedance: 8Ω
- Power Handling: 15W RMS, 40W Continuous
- Includes Cutout Template and User Manual
- Optional Mounting Bracket: SKIC-4
General Information
Name: Kramer Galil 4-CO 4" 2-Way Open-Back Ceiling Speaker, 1-Pair
Category: Kramer Electronics, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KR-GALIL4COP Brand Name Kramer Manufacturer Kramer Electronics Manufacturer Part Number 60-000083 Packaged Quantity 2 Product Line Galil Product Model 60-000083 Product Name Kramer GALIL-4-CO(PAIR) 4" Opened-Back 2-Way Ceiling Speakers Product Type Speaker Weight 2.09 lb
Crossover Type 2-way Impedance 8 ohms Sensitivity 83 dB Speaker Size 4"
Maximum Frequency Response 20 kHz Minimum Frequency Response 60 Hz RMS Output Power 15W
Sound Emission 3 dB
