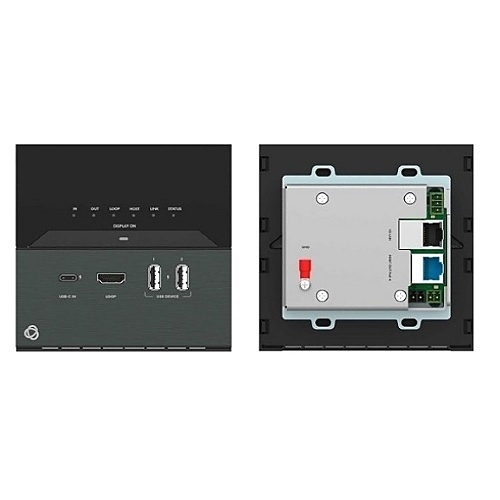

Kramer EXT3-C-WP-XR-T/US(B) 4K 60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, and IR Over Extended–Reach HDBaseT 3.0, Black
50-80581195|KR-PXRTUSB
Kramer EXT3-C-WP-XR-T/US(B) 4K 60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, and IR Over Extended–Reach HDBaseT 3.0, Black
50-80581195|KR-PXRTUSB
Kramer Electronics
Kramer EXT3-C-WP-XR-T/US(B) 4K 60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, and IR Over Extended–Reach HDBaseT 3.0, Black
50-80581195 | KR-PXRTUSB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
EXT3-C-WP-XR-T USB-C transmitter is a high-performance, extended-reach HDBaseT 3.0 transmitter for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS-232, and IR signals over twisted pair. The EXT3-C-WP-XR-T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal and extends it over HDBT to a compatible receiver. The EXT3-C-WP-XR-T transmitter accepts power over the copper extension cable from a PoE provider remote device.
Main Features
- Aesthetic and modern front panel look and design that integrates nicely with design of room and podium deployments
- Clean and convenient user interface, substantially increase customer and user quality of experience with the Wall-Plate
- Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures
- Simply press the DISPLAY ON button to toggle on and off the power of the remote CEC–enabled display; button LED indicates the power on/off status of the remote display
- Uncompressed 4K at 60Hz (4:4:4) HDMI, HDCP 2.3, EDID and CEC signals are passed through from the source to the display
- Supports HDR10, deep color, x.v.Color, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Transmitter mirrors input HDMI signal to loop output port for connecting a local monitor
- An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides
- I–EDIDPro Kramer Intelligent EDID Processing, Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems
- Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound
General Information
Name: Kramer EXT3-C-WP-XR-T/US(B) 4K 60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, and IR Over Extended–Reach HDBaseT 3.0, Black
Category: Kramer Electronics, Pro AV, Commercial Video Conferencing, Video Conference Mounts & Accessories
UPC Code:
Country of Origin: Israel. Country of origin is subject to change.
Specifications
ADI Part Number KR-PXRTUSB Brand Name Kramer Electronics Manufacturer Part Number 50-80581195
Color Black
